813,00 PLN

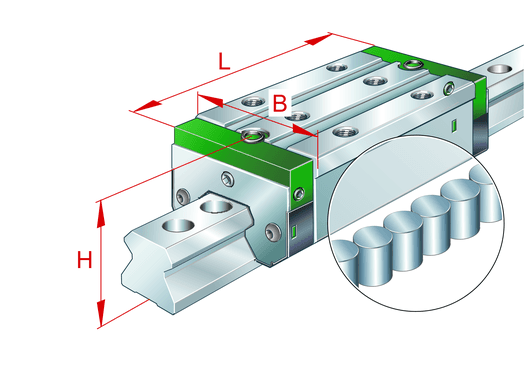

High, narrow carriage with full complement recirculating roller system for linear recirculating roller bearing and guideway assembly, for oil or grease lubrication
| Class description short | Recirculating roller bearing carriage |
| Mass netto | 0.583 kg |
| REACH | REACH compliant with declarable lead proportion |
| RoHS | RoHS compliant with declarable substances |
| Accuracy class | G2 |
| Brand | INA |
| Position lubrication connector | 11.5 mm |
| Thread depth | 7.5 mm |
| Distance from locating edge to hole | 6.5 mm |
| Distance from locating edge on carriage to locating edge on guideway | 12.5 mm |
| Free space, system dimension | 6.5 mm |
| Height system | 40.0 mm |
| Overall length carriage | 91.0 mm |
| Dynamic load rating | 28000.0 N |
| Dynamic load rating | 65000.0 N |
| Material name | RWU |
| Maximum permissible screw depth for lubrication connectors | 6.0 mm |
| Max. diameter of lubrication hole in adjacent construction | 3.0 mm |
| Static moment rating about X axis | 350.0 Nm |
| Static moment rating about Y axis | 760.0 Nm |
| Static moment rating about Z axis | 680.0 Nm |
| O-Ring DIN 3771 | 10x1,5 |
| PFAS | nein |
| Position lubrication connector | 19.5 mm |
| Preload class | V2 |
| Maximum tightening torque | 17.0 Nm |
| Width carriage | 48.0 mm |
| Width rail | 23.0 mm |
| Carriage design | H |
| Lubrication connector | M6 |
| Size Code | 25 |
| Fixing screws below (DIN ISO 4762-12.9) | M6 |
| Version | E |
