956,20 PLN

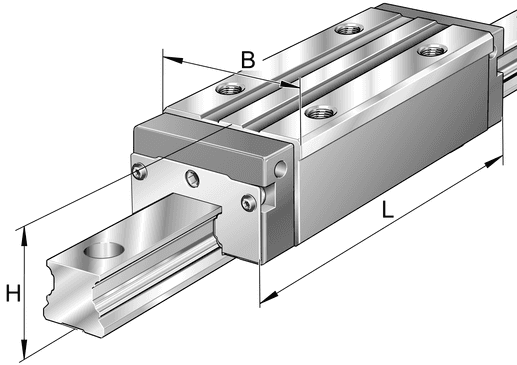

Carriages KWVE..-B-SL, narrow, long carriage, four-row
| Class description short | Recirculating ball bearing carriage |
| Mass netto | 3.482 kg |
| REACH | REACH compliant with declarable lead proportion |
| RoHS | RoHS compliant with declarable substances |
| Accuracy class | G3 |
| Brand | INA |
| Position lubrication connector | 16.5 mm |
| Position lubrication connector | 16.5 mm |
| Thread depth | 17.0 mm |
| Maximum permissible screw depth for lubrication connectors | 7.0 mm |
| Maximum permissible screw depth for lubrication connectors | 7.0 mm |
| Lubrication connector | M6 |

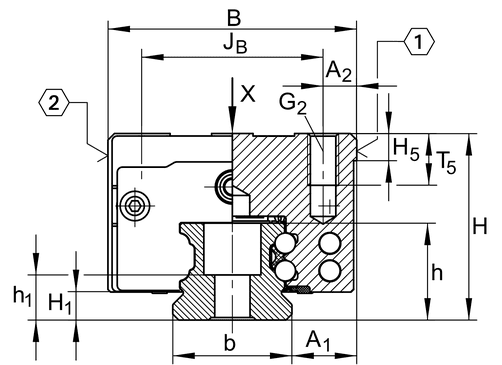

| Distance from locating edge to hole | 13.0 mm |
| Distance from locating edge on carriage to locating edge on guideway | 20.5 mm |
| Free space, system dimension | 9.7 mm |
| Height system | 60.0 mm |
| Overall length carriage | 172.7 mm |
| Dynamic load rating | 82000.0 N |
| Static load rating | 181000.0 N |
| Material name | KWVE |
| Static moment rating about X axis | 4635.0 Nm |
| Static moment rating about Y axis | 4000.0 Nm |
| Static moment rating about Z axis | 4000.0 Nm |
| PFAS | nein |
| Position lubrication connector | 35.3 mm |
| Preload class | V1 |
| Maximum tightening torque | 83.0 Nm |
| Width carriage | 86.0 mm |
| Width rail | 45.0 mm |
| Carriage design | SL |
| Lubrication connector | M6 |
| Size code | 45 |
| Fixing screws above (DIN ISO 4762-12.9) | M10 |
| Version | B |
