743,50 PLN

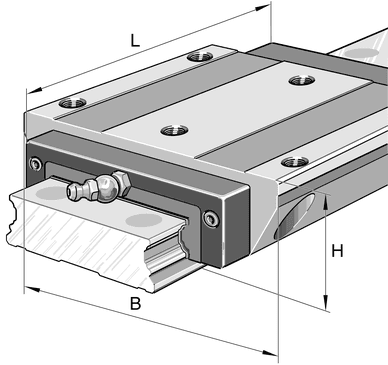

Carriages KWVE..-WL, wide, long carriage for linear recirculating ball bearing and guideway assembly

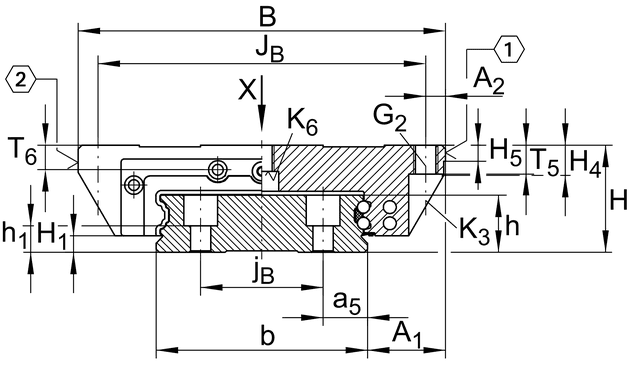

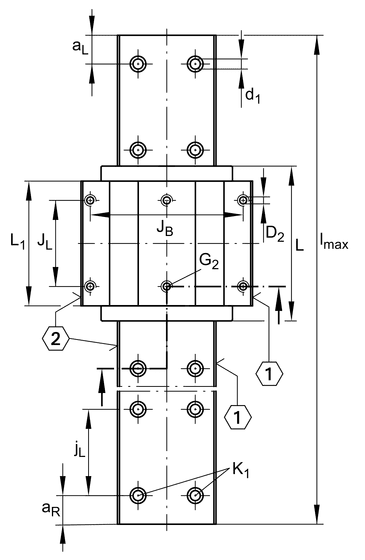

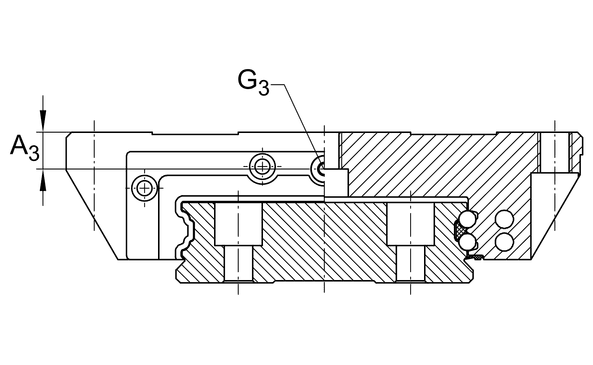

| Class description short | Recirculating ball bearing carriage |
| Mass netto | 1.6 kg |
| REACH | REACH compliant with declarable lead proportion |
| RoHS | RoHS compliant with declarable substances |
| Accuracy class | G3 |
| Brand | INA |
| Position lubrication connector | 10.0 mm |
| Thread depth | 10.0 mm |
| Maximum permissible screw depth for lubrication connectors | 6.0 mm |
| Distance from locating edge to hole | 6.5 mm |
| Distance from locating edge on carriage to locating edge on guideway | 25.5 mm |
| Free space, system dimension | 5.2 mm |
| Height system | 35.0 mm |
| Overall length carriage | 107.5 mm |
| Dynamic load rating | 23400.0 N |
| Static load rating | 54000.0 N |
| Material name | KWVE |
| Static moment rating about X axis | 2225.0 Nm |
| Static moment rating about Y axis | 825.0 Nm |
| Static moment rating about Z axis | 825.0 Nm |
| PFAS | nein |
| Preload class | V2 |
| Maximum tightening torque | 17.0 Nm |
| Maximum tightening torque | 17.0 Nm |
| Maximum tightening torque | 41.0 Nm |
| Width carriage | 120.0 mm |
| Width rail | 69.0 mm |
| Carriage design | WL |
| Lubrication connector | M6 |
| Size code | 25 |
| Fixing screws below (DIN ISO4762-12.9) | M6 |
| Fixing screws below (DIN ISO 4762-12.9) | M6 |
| Fixing screws above (DIN ISO 4762-12.9) | M8 |
| Version | Version |
