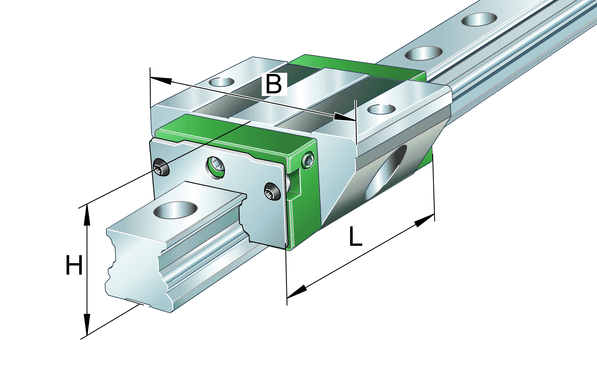

Carriages KWVE..-B-EC, expanded interchangeability, short carriage, four-row
| Class description short | Recirculating ball bearing carriage |
| Mass netto | 0.806 kg |
| REACH | REACH compliant with declarable lead proportion |
| RoHS | RoHS compliant with declarable substances |
| Accuracy class | G4 |
| Brand | INA |
| Position lubrication connector | 11.5 mm |
| Position lubrication connector | 7.0 mm |
| Thread depth | 12.0 mm |
| Maximum permissible screw depth for lubrication connectors | 7.0 mm |
| Maximum permissible screw depth for lubrication connectors | 7.0 mm |
| Lubrication connector | M6 |
| Distance from locating edge to hole | 9.0 mm |
| Distance from locating edge on carriage to locating edge on guideway | 31.0 mm |
| Free space, system dimension | 5.9 mm |
| Height system | 42.0 mm |
| Overall length carriage | 69.0 mm |
| Dynamic load rating | 18700.0 N |
| Static load rating | 31500.0 N |
| Material name | KWVE |
| Static moment rating about X axis | 554.0 Nm |
| Static moment rating about Y axis | 248.0 Nm |
| Static moment rating about Z axis | 248.0 Nm |
| PFAS | nein |
| Position lubrication connector | 26.5 mm |
| Preload class | V1 |
| Maximum tightening torque | 41.0 Nm |
| Width carriage | 90.0 mm |
| Width rail | 28.0 mm |
| Carriage design | EC |
| Lubrication connector | M6 |
| Size code | 30 |
| Fixing screws below (DIN ISO 4762-12.9) | M8 |
| Version | B |
