1.712,40 PLN

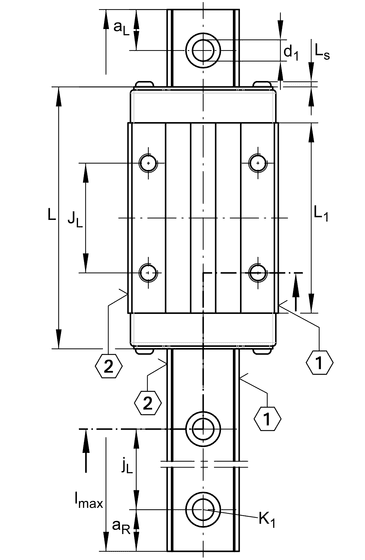

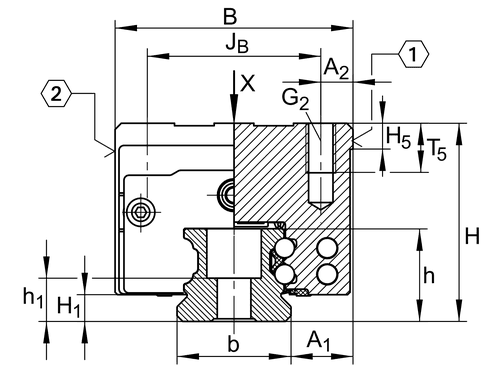

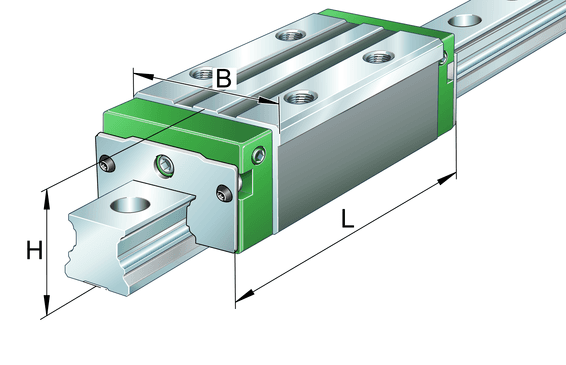

Carriages KWVE..-B-S, narrow carriage, four-row
| Class description short | Recirculating ball bearing carriage |
| Mass netto | 4.453 kg |
| REACH | REACH compliant with declarable lead proportion |
| RoHS | RoHS compliant with declarable substances |
| Accuracy class | G2 |
| Brand | INA |
| Position lubrication connector | 15.0 mm |
| Position lubrication connector | 15.0 mm |
| Thread depth | 15.0 mm |
| Maximum permissible screw depth for lubrication connectors | 7.0 mm |
| Maximum permissible screw depth for lubrication connectors | 7.0 mm |
| Lubrication connector | M6 |
| Distance from locating edge to hole | 12.5 mm |
| Distance from locating edge on carriage to locating edge on guideway | 23.5 mm |
| Free space, system dimension | 13.5 mm |
| Height system | 70.0 mm |
| Overall length carriage | 173.6 mm |
| Dynamic load rating | 104000.0 N |
| Static load rating | 213000.0 N |
| Material name | KWVE |
| Static moment rating about X axis | 5600.0 Nm |
| Static moment rating about Y axis | 2730.0 Nm |
| Static moment rating about Z axis | 2730.0 Nm |
| PFAS | nein |
| Position lubrication connector | 40.5 mm |
| Preload class | V0 |
| Maximum tightening torque | 140.0 Nm |
| Width carriage | 100.0 mm |
| Width rail | 53.0 mm |
| Carriage design | S |
| Lubrication connector | M6 |
| Size code | 55 |
| Fixing screws above (DIN ISO 4762-12.9) | M12 |
| Version | B |
