3.240,30 PLN

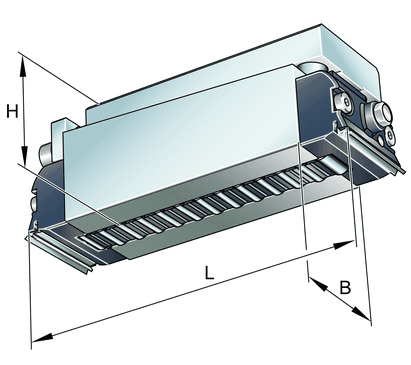

Linear roller bearings, with spacer elements, with integrated adjusting gib, RUSV..-KS
| Class description short | Linear recirculating roller bearing unit |
| Mass netto | 0.84 kg |
| Width | 40.0 mm |
| REACH | REACH compliant with declarable lead proportion |
| RoHS | RoHS compliant with declarable substances |
| Adjustment maximum | 0.52 mm |
| Adjustment screw revolution | 0.05 mm |
| Brand | INA |
| Suitable Guide Rails | UG9741, UGN9741-A, UZ9741, UZN9741-A, UFK4710, UFB6412 |
| Height | 42.0 mm |
| Hexagon socket adjusting screw | 6.0 mm |
| Hexagon socket counter forcing screw | 3.0 mm |
| Length total | 98.0 mm |
| Basic dynamic load capacity | 76000.0 N |
| Basic static load capacity | 113000.0 N |
| Mounting dimension | 23.0 mm |
| Mounting dimension | 6.0 mm |
| PFAS | nein |
| Screw stroke A | 10.0 mm |
| Tightening torque fixing screws | 17.0 Nm |
| Size Code | 42086 |
| Lubrication connector DIN3405-A | M6 |
| Size thread k DIN | M6 |
| Suffix | KS |
