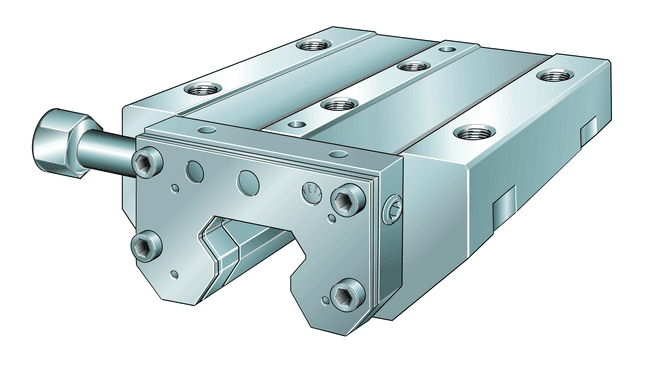

Clamping element RUKS..-D-A-SR,for linear recirculating roller bearing and guideway assembly, oil connector on side
| Class description short | Braking/clamping element |
| Mass netto | 6.975 kg |
| REACH | REACH compliant for SVHC free linear products (acc to PL responsibles) |
| Brand | INA |
| Depth thread | 18.0 mm |
| Distance | 40.5 mm |
| Suitable guideway | TSX55-E; TSX55-F |
| Height sytem | 70.0 mm |
| Hole pattern centre | 70.0 mm |
| Hole pattern lengthwise | 95.0 mm |
| Hole pattern width | 116.0 mm |
| Length of clamping element | 186.3 mm |
| Length saddle plate | 163.0 mm |
| Max diameter lubrication hole adjacent constr | 6.0 mm |
| Mounting dimension oil connector | 18.5 mm |
| Oil feed | SR |
| PFAS | nein |
| Space (system) | 11.0 mm |
| Suitable system | RUE55-E; RUE55-F |
| Through-bore | 12.5 mm |
| Tightening torque above | 140.0 Nm |
| Tightening torque below | 140.0 Nm |
| Width clamping element | 138.0 mm |
| Inner construction | A |
| Size code | 55 |
| Size thread above for DIN ISO 4762-12.9 | M14 |
| Size thread below for DIN ISO 4762-12.9 | M12 |
| Version | D |
