6.080,90 PLN
Clamping element RUKS..-D-A-H-SR,for linear recirculating roller bearing and guideway assembly, oil connector on side
| Class description short | Braking/clamping element |
| Mass netto | 2.3 kg |
| REACH | REACH compliant for SVHC free linear products (acc to PL responsibles) |
| Brand | INA |
| Depth thread | 10.0 mm |
| Distance | 38.0 mm |
| Suitable guideway | TSX35-E; TSX35-F |
| Height sytem | 55.0 mm |
| Hole pattern lengthwise | 50.0 mm |
| Hole pattern width | 50.0 mm |
| Length of clamping element | 134.3 mm |
| Length saddle plate | 113.0 mm |
| Max diameter lubrication hole adjacent constr | 6.0 mm |

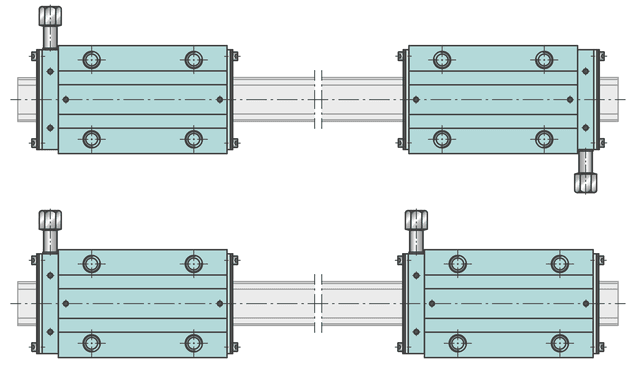

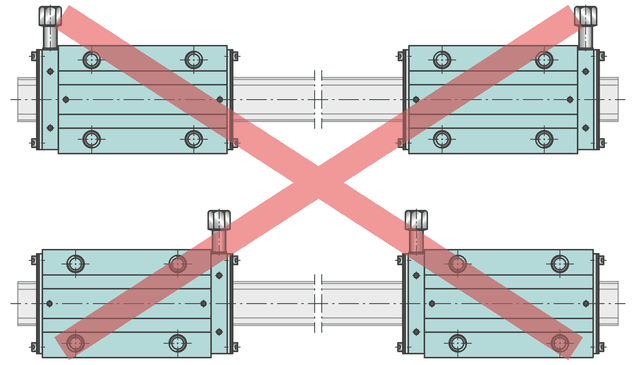

| Mounting dimension oil connector | 39.5 mm |
| Oil feed | SR |
| PFAS | nein |
| Space (system) | 6.8 mm |
| Suitable system | RUE35-E; RUE35-F |
| Tightening torque above | 41.0 Nm |
| Width clamping element | 68.0 mm |
| Design | H |
| Inner construction | A |
| Size code | 35 |
| Size thread above for DIN ISO 4762-12.9 | M8 |
| Version | D |
