516,00 PLN

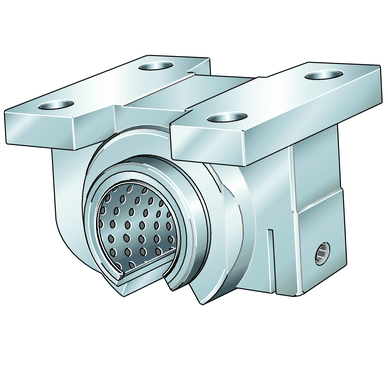

Linear plein bearing and housing unit; open design, sealed on all sides, with relubrication facility
| Class description short | Linear plain bearing and housing unit |
| Mass netto | 90.0 g |
| Width | 50.0 mm |
| REACH | REACH compliant for SVHC free linear products (acc to PL responsibles) |
| Angle | 78.0 ° |
| Brand | INA |
| Diameter of ball complement | 16.0 mm |
| Height | 36.8 mm |
| Center height | 22.0 mm |
| Length | 36.0 mm |
| Lower tolerance | 0.15 mm |
| Lower tolerance | 0.15 mm |
| Max. tightening torque | 1.5 Nm |
| Mounting Dimension | 4.7 mm |
| Mounting Dimension | 8.0 mm |
| PFAS | ja |
| Tolerance | 0.5 mm |
| Upper tolerance | 0.15 mm |
| Upper tolerance | 0.15 mm |
| Width across flats | 2.5 mm |
| Lubrication nipple | NIPA1 |
| Relubrication facility | AS |
| Seal | PP |
| Size code | 16 |
| Tolerance | h12 |
