690,70 PLN

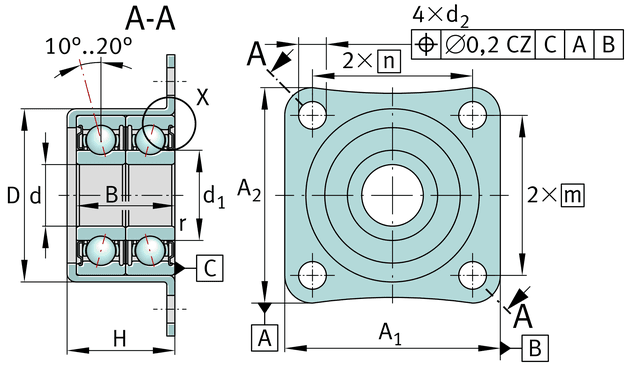

Angular contact ball bearing units ZKLR..-2Z, double direction, for screw mounting, gap seals on both sides
| Class description short | Flanged housing unit |
| Mass netto | 52.898 g |
| Basic dynamic load rating, radial | 7000.0 N |
| Basic static load rating, radial | 3900.0 N |
| REACH | REACH conform |
| RoHS | RoHS compliant |
| Axial runout | 7.0 µm |
| Basic dynamic load rating, axial | 2430.0 N |
| Basic static load rating, axial | 2420.0 N |
| Bearing friction torque | 0.12 Nm |
| Bore diameter | 10.0 mm |
| Bore diameter lower tolerance | -0.008 mm |
| Bore diameter upper tolerance | 0.0 mm |
| Bore distance height | 26.0 mm |
| Bore distance width | 26.0 mm |
| Brand | INA |
| Diameter shaft shoulder | 12.4 mm |
| Fatigue load limit, radial | 203.0 N |
| Fixing boring diameter | 4.5 mm |
| Flange width | 35.0 mm |
| Bearing sealed | Yes |
| Housing in kit | ZKLR1035-2Z |
| Sealing type | LIP |
| Height flange | 35.0 mm |
| Height housing | 17.5 mm |
| Height housing lower tolerance | -0.5 mm |
| Height housing upper tolerance | 0.0 mm |
| Inner ring width lower tolerance | -0.25 mm |
| Inner ring width upper tolerance | 0.25 mm |
| Locknut 1 | ZM10 |
| Mass moment of inertia | 0.0075 kg*cm² |
| Minimum support diameter outer ring outside | 26.0 mm |
| Minimum chamfer dimension | 0.3 mm |
| Number of screws | 4.0 |
| Outside diameter bearing pot lower tolerance | -0.01 mm |
| Outside diameter bearing pot upper tolerance | 0.03 mm |
| Outside diameter bearing pot | 28.14 mm |
| PFAS | nein |
| Position bore in the housing | 0.2 mm |
| Rib diameter inner ring | 13.55 mm |
| Rigidity axial | 19.0 N/µm |
| Screw size | M4 |
| Support diameter outer ring inside | 22.0 mm |
| Tightening torque nut | 6.0 Nm |
| Width, inner ring | 16.0 mm |
| Sealing | 2Z |
