323,10 PLN

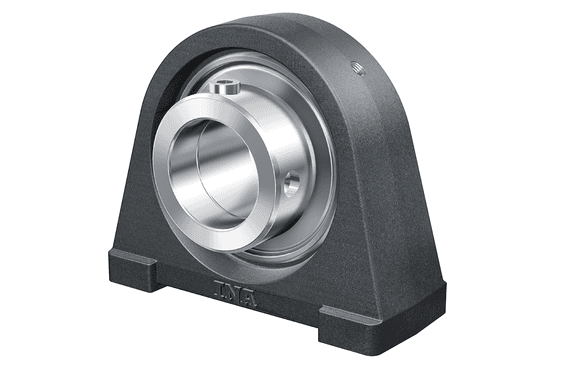

Plummer block housing units PSHE, cast iron housing, radial insert ball bearing with eccentric locking collar, P seals
| Class description short | Plummer block housing unit |
| Mass netto | 1.99 kg |
| Operating temperature min. | -20.0 °C |
| Operating temperature max. | 120.0 °C |
| REACH | REACH compliant with declarable lead proportion |
| RoHS | RoHS compliant with declarable substances |
| Bearing designation | GRAE45-XL-NPP-B |
| Bore diameter | 45.0 mm |
| Brand | INA |
| Connection thread for lubrication | M6 |
| Distance of raceway to locking collar | 32.8 mm |
| Distance fixing bore | 95.3 mm |
| Distance shaft axis | 54.0 mm |
| Bearing in kit | GRAE45-XL-NPP-B |
| Bearing sealed | Yes |
| Bearing sort | RIBB |
| Bearing split | No |
| Housing opening | durchgehend |
| Distance between mounting bolt centerlines (length) | 95.3 mm |
| Height bearing seat | 54.0 mm |
| Housing height | 107.0 mm |
| Housing in kit | PSHE45-XL |
| Housing material | GG |
| Housing shape | Fuss_kurz |
| Housing sort | Plummer |
| Housing split | Nein |
| Inner diameter bearing | 45.0 mm |
| Housing length | 120.0 mm |
| Location on shaft | Acc |
| Housing qty bolts | 2 |
| Outer diameter bearing | 85.0 mm |
| Sealing type | LIP |
| Housing width | 48.0 mm |
| Basic dynamic load rating | 34500.0 N |
| Basic static load rating | 20400.0 N |
| Height | 107.0 mm |
| Housing | SHE09 |
| Length total | 120.0 mm |
| Locking collar total width | 43.8 mm |
| Marketing category | XL |
| Material | GG |
| PFAS | nein |
| Thread fixing bore | M12 |
| Width (base) | 48.0 mm |
| Width (head) | 32.0 mm |
