373,00 PLN

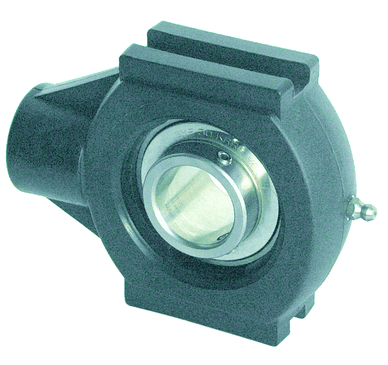

Take-up housing unit PTUE..-TV, RIBB plastic
| Class description short | Take-up housing unit |
| Mass netto | 1.06 kg |
| Operating temperature min. | -35.0 °C |
| Operating temperature max. | 100.0 °C |
| REACH | REACH conform |
| RoHS | RoHS compliant |
| Bearing designation | GRAE40-NPP-B-FA107/125.5 |
| Bore diameter | 40.0 mm |
| Brand | INA |
| Connection thread for lubrication | 1/4-28 UNF |
| Distance guidance groove | 102.0 mm |
| Distance shaft axis | 85.0 mm |
| End cap | KASK08-S-G |
| Bearing in kit | GRAE40-NPP-B-FA107/125.5 |
| Bearing sealed | Yes |
| Bearing sort | RIBB |
| Bearing split | No |
| Housing opening | combi |
| Height bearing seat | 85.0 mm |
| Housing height | 114.0 mm |
| Housing in kit | PTUE40-TV-FA125.5 |
| Housing material | PL |
| Housing shape | Loch_unten |
| Housing sort | Take-up |
| Housing split | Nein |
| Inner diameter bearing | 40.0 mm |
| Housing length | 140.0 mm |
| Location on shaft | Acc |
| Housing qty bolts | 1 |
| Outer diameter bearing | 80.0 mm |
| Sealing type | LIP |
| Housing width | 40.0 mm |
| Basic dynamic load rating | 32500.0 N |
| Basic static load rating | 19800.0 N |
| Height (housing, mounting side) | 40.0 mm |
| Housing | TUE08-TV |
| Housing total width | 113.0 mm |
| Length | 140.0 mm |
| Length guidance grooves | 80.0 mm |
| Manufacturing instruction | FA125.5 |
| Material | TV |
| Open protecting cap | KASK08-S-R-NBR |
| PFAS | nein |
| Thread fixing bore | M16 |
| Width guidance groove | 16.0 mm |
| Width housing | 33.5 mm |
| Special material | TV |
