1.003,00 PLN

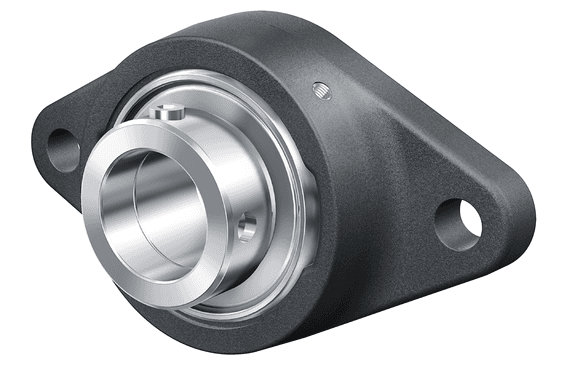

Housing units RCJTY, two-bolt flanged housing units, cast iron, grub screws in inner ring, R seals
| Class description short | Flanged housing unit |
| Mass netto | 5.54 kg |
| Width | 77.8 mm |
| Operating temperature min. | -20.0 °C |
| Operating temperature max. | 120.0 °C |
| Basic dynamic load rating, radial | 62000.0 N |
| Basic static load rating, radial | 44500.0 N |
| REACH | REACH compliant with declarable lead proportion |
| RoHS | RoHS compliant with declarable substances |
| Bearing designation | GYE75-XL-KRR-B |
| Bore diameter | 75.0 mm |
| Brand | INA |
| Connection thread for lubrication | M6 |
| Distance fixing bore | 216.0 mm |
| Distance raceway | 38.0 mm |
| Fatigue load limit, radial | 1880.0 N |
| Fixing bore | 21.0 mm |
| Flange width | 160.0 mm |
| Bearing in kit | GYE75-XL-KRR-B |
| Bearing sealed | Yes |
| Bearing sort | RIBB |
| Bearing split | No |
| Housing opening | durchgehend |
| Distance between mounting bolt centerlines (length) | 216.0 mm |
| Height bearing seat | 129.0 mm |
| Housing height | 258.0 mm |
| Housing in kit | RCJTY75-XL |
| Housing material | GG |
| Housing shape | Oval |
| Housing sort | Flanged |
| Housing split | Nein |
| Inner diameter bearing | 75.0 mm |
| Housing length | 160.0 mm |
| Location on shaft | Acc |
| Housing qty bolts | 2 |
| Outer diameter bearing | 130.0 mm |
| Sealing type | LIP |
| Housing width | 82.5 mm |
| Basic dynamic load rating | 66000.0 N |
| Basic static load rating | 44500.0 N |
| Height flange | 258.0 mm |
| Height housing | 57.0 mm |
| Housing | CJT15 |
| Marketing category | XL |
| Material | GG |
| Number of housings | 1.0 |
| Number of screwing holes | 2.0 |
| PFAS | nein |
| Shoulder diameter housing | 160.0 mm |
| Thickness of flange | 18.0 mm |
| Total height unit | 82.5 mm |
