99,70 PLN

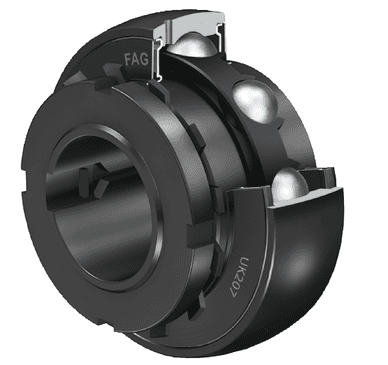

Radial insert ball bearings UK, spherical outer ring, location by adapter sleeve, RSR seals on both sides
| Class description short | Radial insert ball bearing |
| Mass netto | 0.37 kg |
| Width | 26.0 mm |
| Operating temperature min. | -20.0 °C |
| Operating temperature max. | 120.0 °C |
| Basic dynamic load rating, radial | 20700.0 N |
| Basic static load rating, radial | 11300.0 N |
| REACH | REACH conform |
| RoHS | RoHS compliant |
| Adapter sleeve | H2306-J30QH |
| Brand | FAG |
| Calculation factor | 13.8 |
| Distance to lubrication hole | 5.0 mm |
| Fatigue load limit, radial | 590.0 N |
| Fuse | MB6 |
| Inner diameter of sleeve | 25.0 mm |
| Locknut | KM6 |
| Outside diameter locking collar/locknut | 45.0 mm |
| Outside diameter | 62.0 mm |
| PFAS | nein |
| Sealing total width | 19.6 mm |
| Sleeve | H.H2306 |
| Total width of bearing | 38.0 mm |
| Width nut and lock | 8.0 mm |
| Width, outer ring | 19.0 mm |
| Sealing | 2RSR |
| Shape of outer surface | B |
