4.359,20 PLN

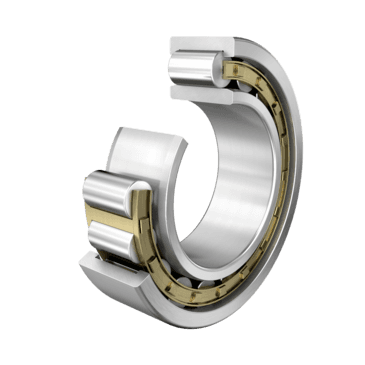

Cylindrical roller bearing NU..-E-XL-M1, with cage, single row, non-locating bearing, 2 ribs on outer ring, 0 ribs on inner ring (smooth), type NU, Running accuracy in P6
| Class description short | Cylindrical roller bearing |
| Mass netto | 15.1 kg |
| Width | 55.0 mm |
| Operating temperature min. | -30.0 °C |
| Operating temperature max. | 150.0 °C |
| Basic dynamic load rating, radial | 610000.0 N |
| Basic static load rating, radial | 600000.0 N |
| Limiting speed | 4550.0 1/min |
| Reference speed | 2650.0 1/min |
| REACH | REACH compliant with declarable lead proportion |
| Axial displacement | 3.5 mm |
| Bore diameter | 120.0 mm |
| Brand | FAG |
| Fatigue load limit, radial | 73000.0 N |
| Marketing category | XL |
| Maximum diameter of housing shoulder | 246.0 mm |
| Maximum diameter of shaft shoulder | 151.0 mm |
| Maximum recess radius | 2.5 mm |
| Maximum recess radius | 2.5 mm |
| Minimum diameter shaft shoulder | 134.0 mm |
| Minimum rib diameter outer ring | 218.7 mm |
| Minimum chamfer dimension | 3.0 mm |
| Minimum chamfer dimension | 3.0 mm |
| Minimum shaft shoulder | 156.0 mm |
| Number of rows | 1 |
| Outside diameter | 260.0 mm |
| PFAS | nein |
| Raceway diameter inner ring | 154.0 mm |
| Raceway diameter outer ring | 230.0 mm |
| Radial internal clearance | C4 (Group 4) |
| Tolerance class | PN |
| Cage | M1 |
| Design | E |
