3.341,00 PLN

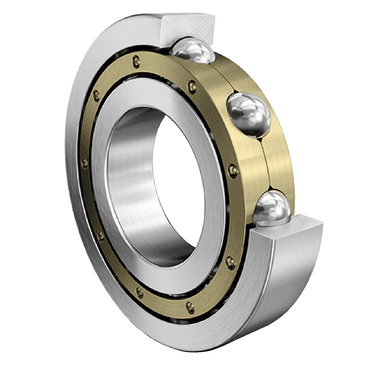

Deep groove ball bearing 618..-MA, single row, solid brass cage
| Class description short | Deep groove ball bearing |
| Mass netto | 2.72 kg |
| REACH | REACH compliant with declarable lead proportion |
| RoHS | RoHS compliant with declarable substances |
| Brand | FAG |
| Outside diameter | 240.0 mm |
| Bore diameter | 190.0 mm |
| Width | 24.0 mm |
| Tolerance class | PN |
| Basic dynamic load rating, radial | 73000.0 N |
| Basic static load rating, radial | 85000.0 N |
| Type of Seal | Without |
| Lubricant | Without |
| Cage | MA |
| Bore type | Z |
| Limiting speed | 4750.0 1/min |
| Dimensional / heat stabilization | S0 |
| Fatigue load limit, radial | 3400.0 N |
| Maximum diameter of housing shoulder | 233.0 mm |
| Maximum fillet radius | 1.5 mm |
| Reference speed | 2700.0 1/min |
| Operating temperature min. | -30.0 °C |
| Operating temperature max. | 150.0 °C |
| Calculation factor | 16.0 |
| Minimum chamfer dimension | 1.5 mm |
| Shoulder diameter outer ring | 224.4 mm |
| Shoulder diameter inner ring | 206.62 mm |
| Minimum diameter shaft shoulder | 197.0 mm |
| Radial internal clearance | CN (Group N) |
| PFAS | nein |
