198,00 PLN

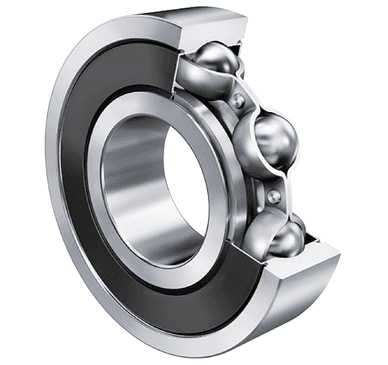

Deep groove ball bearing 60..-H-2RSR, single row, H-Series, seals, steel sheet metal cage
| Class description short | Deep groove ball bearing |
| Mass netto | 0.612 kg |
| Brand | FAG |
| Outside diameter | 115.0 mm |
| Bore diameter | 75.0 mm |
| Width | 20.0 mm |
| Tolerance class | PN |
| Basic dynamic load rating, radial | 38240.0 N |
| Basic static load rating, radial | 31790.0 N |
| Type of Seal | 2RSR |
| Lubricant | Lubricating grease |
| Cage | JN |
| Bore type | Z |
| Limiting speed | 3000.0 1/min |
| Dimensional / heat stabilization | SN |
| Fatigue load limit, radial | 1860.0 N |
| Maximum diameter of housing shoulder | 109.0 mm |
| Maximum fillet radius | 1.0 mm |
| Operating temperature min. | -20.0 °C |
| Operating temperature max. | 100.0 °C |
| Calculation factor | 15.9 |
| Minimum chamfer dimension | 1.1 mm |
| Shoulder diameter outer ring | 103.8 mm |
| Caliber diameter outer ring | 106.0 mm |
| Shoulder diameter inner ring | 88.1 mm |
| Minimum diameter shaft shoulder | 81.0 mm |
| Radial internal clearance | CN (Group N) |
| Design variant | H |
| PFAS | nein |
| Version code | >N |
