34.693,70 PLN

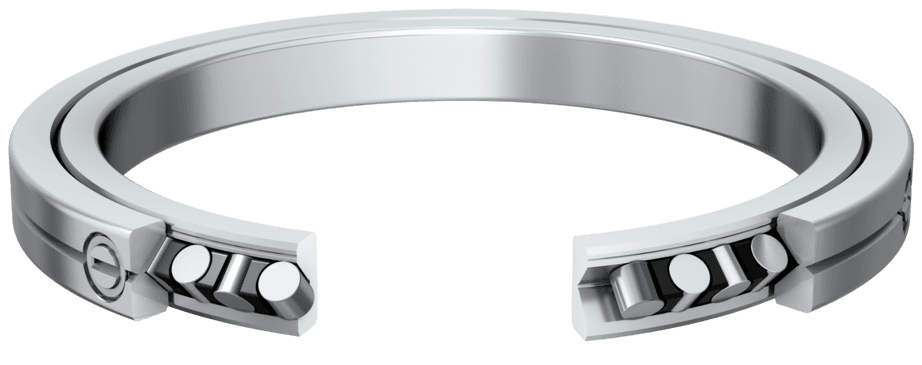

Crossed roller bearingsdimension series 18 to DIN 616
| Class description short | Crossed roller bearing |
| Mass netto | 12.92 kg |
| Operating temperature min. | -30.0 °C |
| Operating temperature max. | 80.0 °C |
| Basic dynamic load rating, radial (for radial load only) | 187000.0 N |
| Basic static load rating, radial (for radial load only) | 550000.0 N |
| REACH | REACH conform |
| RoHS | RoHS compliant |
| Running accuracy, axial | 0.01 mm |
| Basic dynamic load rating, axial | 265000.0 N |
| Basic static load rating, axial | 1130000.0 N |
| Dimensions identical to ISO dimension series 18 | 61868 |
| Bore Diameter | 340.0 mm |
| Inner diameter outer ring | 380.8 mm |
| Bore diameter lower tolerance | -0.029 mm |
| Bore diameter upper tolerance | 0.007 mm |
| Brand | INA |
| Rolling element pitch circle diameter | 380.0 mm |
| Diameter of lubrication hole | 2.5 mm |
| Height of the assembled bearing | 38.0 mm |
| Height of individual ring | 38.0 mm |
| Height inner ring | 38.0 mm |
| Height of individual ring lower tolerance | -0.05 mm |
| Height of individual ring upper tolerance | 0.0 mm |
| Limiting speed for grease lubrication with normal clearance | 200.0 1/min |
| Limiting speed for oil lubrication with normal clearance | 400.0 1/min |
| Outer diameter inner ring | 379.2 mm |
| Maximum axial tilting clearance, at standard bearing clearance | 0.08 mm |
| Maximum radial bearing clearance, at standard bearing clearance | 0.04 mm |
| Low clearance: Preload | 0.01 mm |
| Low clearance: Radial clearance | 0.005 mm |
| Minimum axial tilting clearance, at standard bearing clearance | 0.02 mm |
| Minimum radial bearing clearance, at standard bearing clearance | 0.01 mm |
| Chamfer dimension | 2.1 mm |
| Outside Diameter | 420.0 mm |
| Outside diameter lower tolerance | -0.04 mm |
| Outside diameter upper tolerance | 0.0 mm |
| PFAS | nein |
| Running accuracy, radial | 0.025 mm |
| Width lower tolerance | -0.14 mm |
| Width upper tolerance | 0.14 mm |
