9.413,30 PLN

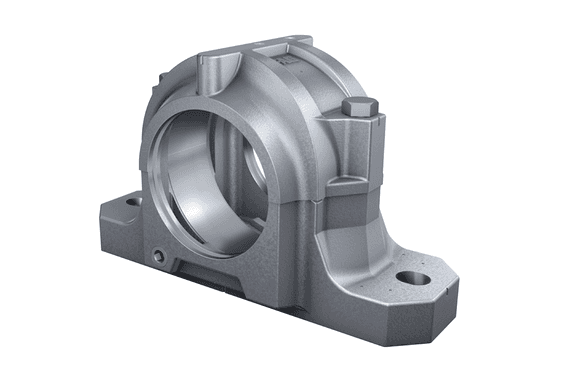

Split plummer block housing for various bearing designs. The SNV series will be replaced by the new SES series in 2022.
| Class description short | Plummer block housing |
| Mass netto | 81.952 kg |
| REACH | REACH compliant with declarable lead proportion |
| RoHS | RoHS compliant with declarable substances |
| Brand | FAG |
| Distance fixing bore | 560.0 mm |
| Base to shaft centerline height | 190.0 mm |
| Height | 386.0 mm |
| Height base | 65.0 mm |
| Length slot | 42.0 mm |
| Outside diameter bearing | 320.0 mm |
| PFAS | nein |
| Screw size | 1.25 inch |
| Size of fixing screws | M30 |
| Wall thickness | 18.0 mm |
| Width base | 180.0 mm |
| Width housing body | 225.0 mm |
| Width slot | 35.0 mm |
| Length base | 650.0 mm |
