21.530,40 PLN

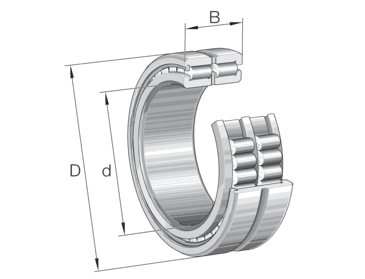

Cylindrical roller bearing SL1850..-A, full complement roller set, two-row, semi-locating bearing, 1 rib on outer ring, 3 ribs on inner ring, type SL18
| Class description short | Cylindrical roller bearing |
| Mass netto | 50.4 kg |
| Width | 160.0 mm |
| Operating temperature min. | -30.0 °C |
| Operating temperature max. | 120.0 °C |
| Basic dynamic load rating, radial | 1980000.0 N |
| Basic static load rating, radial | 3650000.0 N |
| Limiting speed | 1140.0 1/min |
| Reference speed | 630.0 1/min |
| REACH | REACH conform |
| RoHS | RoHS compliant |
| Axial displacement | 9.0 mm |
| Bore diameter | 220.0 mm |
| Brand | INA |
| Distance to lubrication hole | 80.0 mm |
| Fatigue load limit, radial | 440000.0 N |
| Maximum diameter of housing shoulder | 297.8 mm |
| Maximum rib diameter inner ring | 254.6 mm |
| Maximum recess radius | 3.0 mm |
| Maximum recess radius | 3.0 mm |
| Minimum diameter of housing shoulder | 297.8 mm |
| Minimum diameter shaft shoulder | 254.6 mm |
| Minimum rib diameter outer ring | 297.8 mm |
| Minimum chamfer dimension | 3.0 mm |
| Minimum chamfer dimension | 3.0 mm |
| Minimum shaft shoulder | 254.6 mm |
| Number of rows | 2 |
| Outside diameter | 340.0 mm |
| PFAS | nein |
| Raceway diameter outer ring | 312.2 mm |
| Radial internal clearance | CN (Group N) |
| Tolerance class | PN |
| Design | A |
