147 540,20 zł
brutto · 119 951,38 zł netto
Kupujesz na firmę? Ceny netto i progi ilościowe w Strefie Partnera.

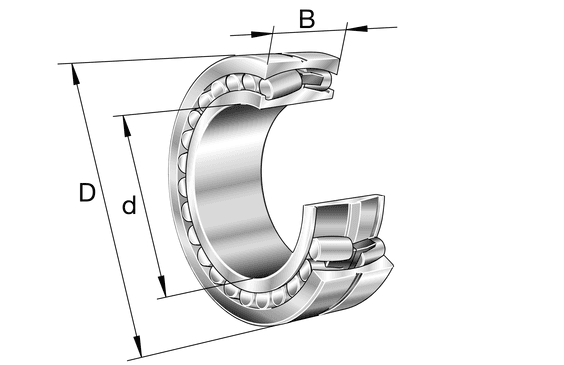

| Średnica wewnętrzna d | 600mm |
|---|---|
| Średnica zewnętrzna D | 980mm |
| Szerokość B | 300mm |
| Obciążenie dynamiczne C | 9 000 000N |
| Obciążenie statyczne C₀ | 19 200 000N |
| Prędkość graniczna | 560 1/min |
| Masa | 895kg |
| Klasa luzu | CN (Group N) |
| Koszyk | MB |
| Temperatura pracy |
| -30…200 °C |
| Reference speed | 270 1/min |
|---|---|
| Adapter sleeve | H31/600-HG |
| Bore diameter outer ring | 852,6mm |
| Bore type | K |
| Diameter lubrication hole | 12,5mm |
| Dynamic axial load factor | 2,2 |
| Dynamic axial load factor | 3,27 |
| Fatigue load limit, radial | 840 000N |
| Limiting value of Fa/Fr for the applicability of diff. Values of factors X and Y | 0,31 |
| Maximum diameter of housing shoulder | 948mm |
| Maximum diameter of shaft shoulder | 693mm |
| Maximum recess radius | 6mm |
| Minimum cavity diameter of the sleeve | 629mm |
| Minimum cavity width of the sleeve | 20mm |
| Minimum diameter shaft shoulder | 632mm |
| Minimum chamfer dimension | 7,5mm |
| Static axial load factor | 2,15 |
| Width of lubricating groove | 23,5mm |
| Withdrawal sleeve | AH31/600A-H |
| Relubrication feature | Standard |
