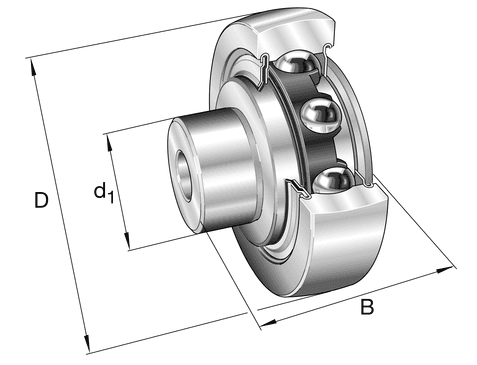

Stud type track rollers ZL2..-DRS, single row self-retaining ball bearings with particularly thick-walled outer ring, ball and cage assembly, without eccentric collar and with a solid, short roller stud with threaded hole, axial guidance of outer ring is provided by the balls, lip seal on stud side axial sealing action, sealing shield with cover on the end face, mounting aid on the face side: mounting slot, no relubrication facility
| Class description short | Stud type track roller |
| Mass netto | 0.08 kg |
| Width | 23.8 mm |
| REACH | REACH conform |
| RoHS | RoHS compliant |
| Basic dynamic load rating, radial | 7000.0 N |
| Basic static load rating, radial | 3450.0 N |
| Bolt/stud length effectively | 10.0 mm |
| Brand | INA |
| Fatigue load limit, radial | 175.0 N |
| Fit diameter of roller stud / stud | 16.0 mm |
| Length total | 21.5 mm |
| Maximum witdh of thrust washer | 14.0 mm |
| Minimum chamfer dimension | 0.6 mm |
| Outside diameter | 40.0 mm |
| PFAS | nein |
| Protrusion outer ring to thrust washer | 2.0 mm |
| Radius of outer ring outside profile | 500.0 mm |
| Speed on permanent grease lubrication | 8500.0 1/min |
| Stop diameter of thrust washer | 20.0 mm |
| Thread inside | M8 |
| Thread length (inner) | 15.0 mm |
| Width, outer ring | 11.0 mm |
| Assembling aid head | SL |
| Outer ring profile | R500 |
| Relubrication | Without |
| Sealing | DRS |
