PLN 322.40

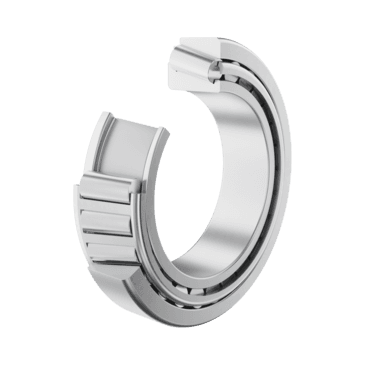

Tapered roller bearings 322, main dimensions acc. to DIN 720, separable
| Class description short | Tapered roller bearing |
| Mass netto | 1.161 kg |
| REACH | REACH conform |
| RoHS | RoHS compliant |
| Brand | FAG |
| Outside diameter | 110.0 mm |
| Bore diameter | 60.0 mm |
| Width, total | 29.75 mm |
| Tolerance class | P5 |
| Basic dynamic load rating, radial | 133000.0 N |
| Basic static load rating, radial | 169000.0 N |
| Cage | Standard |
| Number of rows | 1 |
| Limiting speed | 6600.0 1/min |
| Width, inner ring | 28.0 mm |
| Width, outer ring | 24.0 mm |
| Quality level | Standard |
| Distance between the apexes of the pressure cones | 24.0 mm |
| Fatigue load limit, radial | 20800.0 N |
| Guidance rib diameter of inner ring | 83.7 mm |
| Limiting value of Fa/Fr for the applicability of diff. Values of factors X and Y | 0.4 |
| Internal design | Standard |
| Maximum diameter of shaft shoulder | 69.0 mm |
| Maximum diameter of housing shoulder | 101.0 mm |
| Maximum fillet radius of housing | 1.5 mm |
| Maximum fillet radius of shaft | 2.0 mm |
| Minimum axial space | 4.0 mm |
| Minimum axial space | 5.5 mm |
| Minimum diameter of housing shoulder | 95.0 mm |
| Minimum diameter of housing shoulder | 104.0 mm |
| Minimum diameter of shaft shoulder | 69.0 mm |
| Minimum chamfer dimension of outer ring back face | 1.5 mm |
| Minimum chamfer dimension of inner ring back face | 2.0 mm |
| Static axial load factor | 0.81 |
| Thermal speed rating | 3900.0 1/min |
| Comparative designation to ISO 10317 and ISO 355 | T3EC060 |
| Dynamic axial load factor | 1.48 |
| Operating temperature min. | -30.0 °C |
| Operating temperature max. | 120.0 °C |
| PFAS | nein |
