17 365,70 zł
brutto · 14 118,46 zł netto
Kupujesz na firmę? Ceny netto i progi ilościowe w Strefie Partnera.

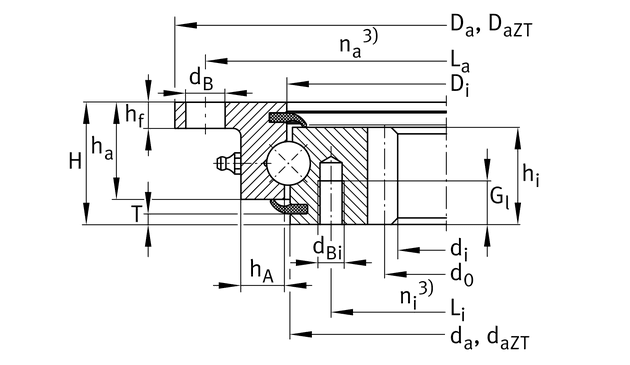

| Średnica wewnętrzna d | 546mm |
|---|---|
| Średnica zewnętrzna D | 748mm |
| Obciążenie dynamiczne C | 147 000N |
| Obciążenie statyczne C₀ | 171 000N |
| Masa | 45,05kg |
| Klasa luzu | Standard_VL |
| Temperatura pracy | -25…80 °C |
| Basic dynamic load rating, axial | 162 000N |
|---|---|
| Basic static load rating, axial |
|---|
| 455 000N |
| Inner diameter outer ring | 645,5mm |
|---|
| Diameter centring outer ring tolerance | -IT8 |
|---|
| Fixing bore | 18mm |
|---|
| Height of flange | 12mm |
|---|
| Height | 56mm |
|---|
| Inner diameter outer ring lower tolerance | 0mm |
|---|
| Inner diameter outer ring upper tolerance | 0,6mm |
|---|
| Max. tooth force against tooth fracture (at a shock factor of 1,35) | 35 000N |
|---|
| Max. tooth force root fatigue strenght (at a shock factor of 1,2) | 23 700N |
|---|
| Max. radial load fixing screws (friction locking) | 74 300N |
|---|
| Modul of gearing | 6mm |
|---|
| Number of teeth | 93 |
|---|
| Outside diameter inner ring | 642,5mm |
|---|
| Outside diameter inner ring lower tolerance | -0,6mm |
|---|
| Outside diameter inner ring upper tolerance | 0mm |
|---|
| Outside diameter lower tolerance | -0,6mm |
|---|
| Outside diameter upper tolerance | 0mm |
|---|
| Pitch circle diameter gearing | 558mm |
|---|
| Pitchcircle diameter fixing holes inner ring | 605mm |
|---|
| Pitchcircle diameter fixing holes outer ring | 720mm |
|---|
| Number of fixing holes in inner ring | 18 |
|---|
| Number of fixing holes in outer ring | 12 |
|---|
| Ring cross section | 20mm |
|---|
| Thread depth fixing hole | 20mm |
|---|
| Tread fixing bore | M12 |
|---|
| Width inner ring | 44,5mm |
|---|
| Width outer ring | 44,5mm |
|---|
| Gearing | N |
|---|
