PLN 367.90

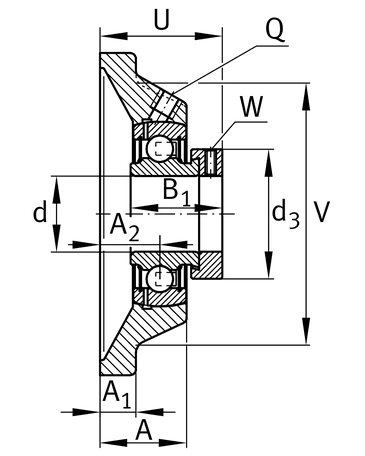

Housing units PCJ..-FA125, four-bolt flanged housing units, cast iron, eccentric locking collar, P seals, with anti-corrosion protection
| Class description short | Flanged housing unit |
| Mass netto | 2.22 kg |
| Operating temperature min. | -20.0 °C |
| Operating temperature max. | 120.0 °C |
| Basic dynamic load rating, radial | 34500.0 N |
| Basic static load rating, radial | 20400.0 N |
| REACH | REACH compliant with declarable lead proportion |
| RoHS | RoHS compliant with declarable substances |
| Bearing designation | GRAE45-XL-NPP-B-FA125 |
| Bore diameter | 45.0 mm |
| Brand | INA |
| Connection thread for lubrication | M6 |
| Distance fixing bore | 105.0 mm |
| Distance raceway | 24.0 mm |
| Fatigue load limit, radial | 970.0 N |
| Fixing bore | 14.0 mm |
| Flange width | 137.0 mm |
| Bearing in kit | GRAE45-XL-NPP-B-FA125 |
| Bearing sealed | Yes |
| Bearing sort | RIBB |
| Bearing split | No |
| Housing opening | durchgehend |
| Distance between mounting bolt centerlines (length) | 148.4924 mm |
| Height bearing seat | 68.5 mm |
| Housing height | 137.0 mm |
| Housing in kit | PCJ45-XL-FA125 |
| Housing material | GG |
| Housing shape | Viereck |
| Housing sort | Flanged |
| Housing split | Nein |
| Inner diameter bearing | 45.0 mm |
| Housing length | 137.0 mm |
| Location on shaft | Acc |
| Housing qty bolts | 4 |
| Outer diameter bearing | 85.0 mm |
| Sealing type | LIP |
| Housing width | 56.7 mm |
| Basic dynamic load rating | 34500.0 N |
| Basic static load rating | 20400.0 N |
| Height housing | 35.0 mm |
| Housing | CJ09 |
| Locking collar total width | 43.8 mm |
| Manufacturing instruction | FA125 |
| Marketing category | XL |
| Material | GG |
| Number of housings | 1.0 |
| Number of screwing holes | 4.0 |
| Outside diameter locking device | 63.0 mm |
| PFAS | nein |
| Shoulder diameter housing | 116.0 mm |
| Thickness of flange | 13.0 mm |
| Total height unit | 56.7 mm |
| Width across flats | 5.0 mm |
