PLN 114.00

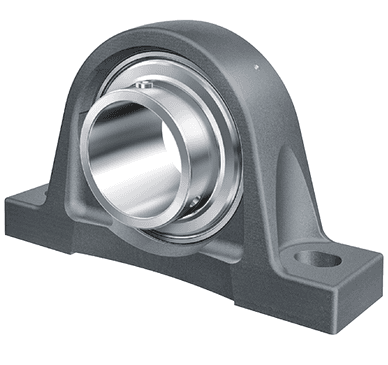

Plummer block housing units PASEY, cast iron housing, radial insert ball bearing with grub screws in inner ring, P seals
| Class description short | Plummer block housing unit |
| Mass netto | 0.56 kg |
| Operating temperature min. | -20.0 °C |
| Operating temperature max. | 120.0 °C |
| REACH | REACH compliant with declarable lead proportion |
| RoHS | RoHS compliant with declarable substances |
| Bearing designation | GAY20-XL-NPP-B |
| Bore diameter | 20.0 mm |
| Brand | INA |
| Connection thread for lubrication | M6 |
| Distance of raceway to locking collar | 18.0 mm |
| Distance fixing bore | 97.5 mm |
| Distance shaft axis | 33.3 mm |
| Bearing in kit | GAY20-XL-NPP-B |
| Bearing sealed | Yes |
| Bearing sort | RIBB |
| Bearing split | No |
| Housing opening | combi |
| Distance between mounting bolt centerlines (length) | 97.5 mm |
| Height bearing seat | 33.3 mm |
| Housing height | 64.0 mm |
| Housing in kit | PASEY20-XL-N |
| Housing material | GG |
| Housing shape | Fuss_lang |
| Housing sort | Plummer |
| Housing split | Nein |
| Inner diameter bearing | 20.0 mm |
| Housing length | 130.0 mm |
| Location on shaft | Acc |
| Housing qty bolts | 2 |
| Outer diameter bearing | 47.0 mm |
| Sealing type | LIP |
| Housing width | 32.0 mm |
| Basic dynamic load rating | 13600.0 N |
| Basic static load rating | 6600.0 N |
| Height | 64.0 mm |
| Height (base) | 14.5 mm |
| Housing | ASE04 |
| Length (slot) | 19.0 mm |
| Length total | 130.0 mm |
| Marketing category | XL |
| Material | GG |
| PFAS | nein |
| Protecting cap | KASK04 |
| Width (base) | 32.0 mm |
| Width (head) | 19.0 mm |
| Width | 25.0 mm |
| Width (slot) | 11.0 mm |
| Groove | N |
