PLN 221.50

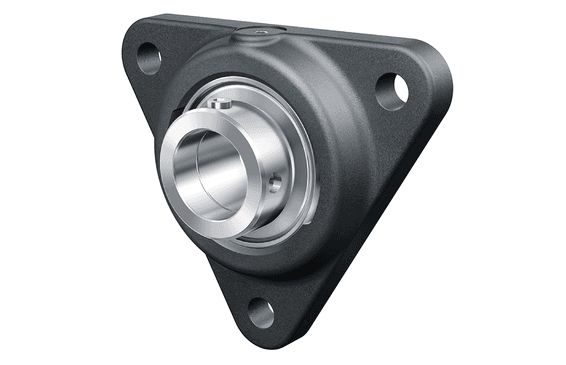

Housing units PCFTR, three-bolt flanged housing units, cast iron, eccentric locking collar, P seals
| Class description short | Flanged housing unit |
| Mass netto | 0.99 kg |
| Operating temperature min. | -20.0 °C |
| Operating temperature max. | 120.0 °C |
| Basic dynamic load rating, radial | 20700.0 N |
| Basic static load rating, radial | 11300.0 N |
| REACH | REACH compliant with declarable lead proportion |
| RoHS | RoHS compliant with declarable substances |
| Bearing designation | GRAE30-XL-NPP-B |
| Bore diameter | 30.0 mm |
| Brand | INA |
| Connection thread for lubrication | M6 |
| Distance raceway | 13.3 mm |
| Distance shaft axis | 44.0 mm |
| Fixing bore | 11.5 mm |
| Bearing in kit | GRAE30-XL-NPP-B |
| Bearing sealed | Yes |
| Bearing sort | RIBB |
| Bearing split | No |
| Housing opening | durchgehend |

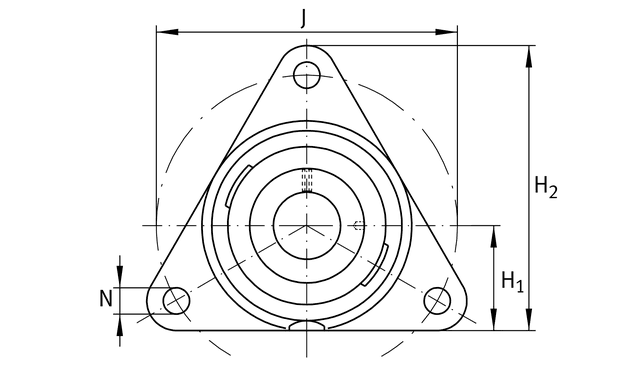

| Distance between mounting bolt centerlines (length) | 116.0 mm |
| Height bearing seat | 44.0 mm |
| Housing height | 117.0 mm |
| Housing in kit | PCFTR30-XL |
| Housing material | GG |
| Housing shape | Dreieck |
| Housing sort | Flanged |
| Housing split | Nein |
| Inner diameter bearing | 30.0 mm |
| Housing length | 117.0 mm |
| Location on shaft | Acc |
| Housing qty bolts | 3 |
| Outer diameter bearing | 62.0 mm |
| Sealing type | LIP |
| Housing width | 40.0 mm |
| Basic dynamic load rating | 20700.0 N |
| Basic static load rating | 11300.0 N |
| Height flange | 117.0 mm |
| Height housing | 24.0 mm |
| Housing | CFTR06 |
| Marketing category | XL |
| Material | GG |
| Number of housings | 1.0 |
| Number of screwing holes | 3.0 |
| Outside diameter eccentric locking collar | 44.0 mm |
| PFAS | nein |
| Pitch circle diameter (holes) | 116.0 mm |
| Thickness of flange | 12.0 mm |
| Total height unit | 40.0 mm |
