PLN 163.20

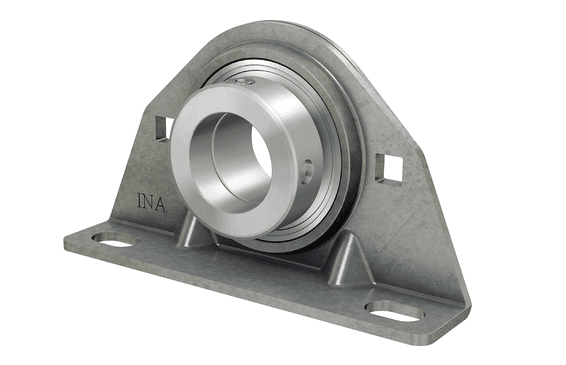

Plummer block housing units PBS, sheet steel housing, radial insert ball bearing with eccentric locking collar, P seals
| Class description short | Plummer block housing unit |
| Mass netto | 0.79 kg |
| Operating temperature min. | -20.0 °C |
| Operating temperature max. | 120.0 °C |
| REACH | REACH compliant with declarable lead proportion |
| RoHS | RoHS compliant with declarable substances |
| Bearing designation | RAE30-XL-NPP-B |
| Bore diameter | 30.0 mm |
| Brand | INA |
| Distance fixing | 16.0 mm |
| Distance fixing bore | 119.0 mm |
| Distance shaft axis | 42.9 mm |
| Distance slot center | 8.0 mm |
| Distance support | 30.2 mm |
| Bearing in kit | RAE30-XL-NPP-B |
| Bearing sealed | Yes |
| Bearing sort | RIBB |
| Bearing split | No |
| Housing opening | durchgehend |
| Distance between mounting bolt centerlines (length) | 119.0 mm |
| Height bearing seat | 42.9 mm |
| Housing height | 85.0 mm |
| Housing in kit | PBS30-XL |
| Housing material | SB |
| Housing shape | Fuss_lang |
| Housing sort | Plummer |
| Housing split | Nein |
| Inner diameter bearing | 30.0 mm |
| Housing length | 159.0 mm |
| Location on shaft | Acc |
| Housing qty bolts | 2 |
| Outer diameter bearing | 62.0 mm |
| Sealing type | LIP |
| Housing width | 38.9 mm |
| Basic dynamic load rating | 20700.0 N |
| Basic static load rating | 11300.0 N |
| Height | 85.0 mm |
| Height (base) | 3.4 mm |
| Housing | GEH62-PBS |
| Length total | 159.0 mm |
| Load carrying capacity (housing) | 3600.0 N |
| Marketing category | XL |
| Material | Steel sheet |
| PFAS | nein |
| Width (base) | 38.9 mm |
| Width (head) | 17.4 mm |
| Width (slot) | 13.5 mm |
