13 415,30 zł

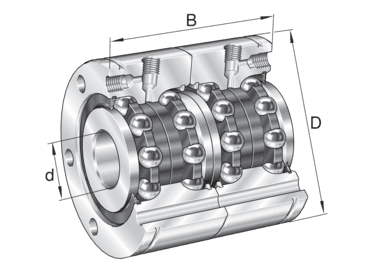

Axial angular contact ball bearing
| Class description short | Axial angular contact ball bearing |
| Mass netto | 8.808 kg |

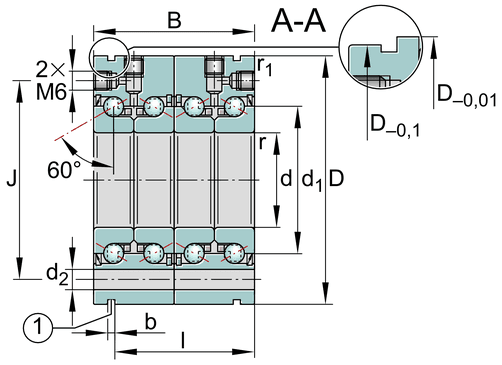

| Width | 108.0 mm |
| Operating temperature min. | -30.0 °C |
| Operating temperature max. | 120.0 °C |
| REACH | REACH_YES_597-82-0! |
| RoHS | RoHS compliant |
| Axial runout | 2.5 µm |
| Basic dynamic load rating, axial | 203000.0 N |
| Basic static load rating, axial | 500000.0 N |
| Bore diameter | 50.0 mm |
| Bore diameter lower tolerance | -0.005 mm |
| Bore diameter upper tolerance | 0.0 mm |
| Brand | INA |
| Connection thread for lubrication | M6 |
| Contact angle | 60.0 ° |
| Distance of extraction slot | 99.0 mm |
| Fatigue load limit, axial | 30500.0 N |
| Fixing holes diameter | 11.0 mm |
| Limiting speed for grease lubrication | 3500.0 1/min |
| Marketing category | XL |
| Maximum diameter of housing | 98.0 mm |
| Minimum chamfer dimension | 0.6 mm |
| Minimum chamfer dimension | 0.6 mm |
| Minimum diameter shaft | 63.0 mm |
| Number of holes in adjacent construction | 12.0 |
| Outside diameter | 140.0 mm |
| Outside diameter lower tolerance | -0.1 mm |
| Outside diameter upper tolerance | 0.0 mm |
| PFAS | nein |

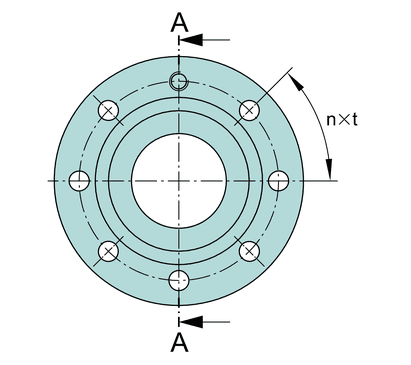

| Pitch circle diameter fixing holes | 113.0 mm |
| Pitch quantity of fixing holes | 12.0 |

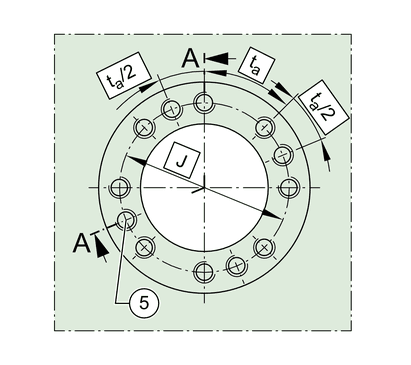

| Pitch separation angle of holes in adjacent construction | 30.0 ° |
| Pitch separation angle of fixing holes | 30.0 ° |
| Position tolerance of bore in the housing | 0.2 mm |
| Recommended INA precision locknut for axial locking | AM50 |
| Recommended INA precision locknut for radial locking | ZMA50/75 |
| Required locknut force axial | 28451.0 N |
| Rib diameter inner ring | 80.0 mm |
| Size of fixing screws | M10X120 |
| Thermally safe operating speed | 2500.0 1/min |
| Tightening torque for the recommended INA precision locknut | 150.0 Nm |
| Tolerance class | Standard |
| Width lower tolerance | -0.5 mm |
| Width of extraction slot | 3.0 mm |
| Width upper tolerance | 0.0 mm |
| Number of bearings | 2AP |
| Sealing | 2Z |
