ZGB40X48X40-A

ELGOGLIDE plain bush, maintenance-free, DIN ISO 4379

Class description short	Bush
Mass netto	0.165 kg
Width	40.0 mm
Operating temperature min.	-50.0 °C
Operating temperature max.	150.0 °C
Basic dynamic load rating, radial	480000.0 N
Basic static load rating, radial	480000.0 N
REACH	REACH conform
RoHS	RoHS compliant
Brand	INA

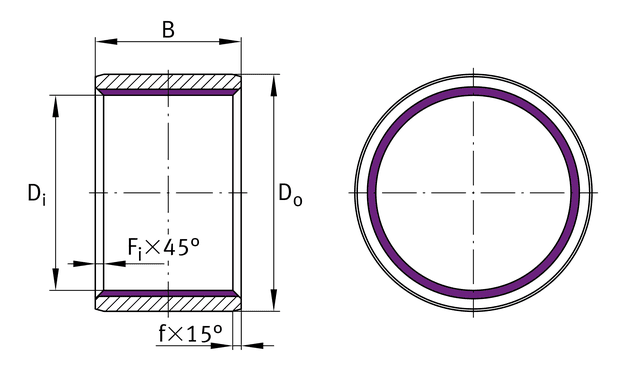

Chamfer angle bore diameter	45.0 °
Chamfer angle outside diameter	15.0 °
Fabric	ELGOGLIDE
Inner diameter, lower tolerance	0.0 mm
Inner diameter, upper tolerance	0.039 mm
Inner diameter	40.0 mm
Inner diameter, tolerance	H8
Inner edge break	0.6 mm
Inner edge break, lower tolerance	-0.3 mm
Inner edge break, max.	0.9 mm
Inner edge break, min.	0.3 mm
Inner edge break, upper tolerance	0.3 mm
Maintenance	Maintenance free
Outer chamfer	2.0 mm
Outer chamfer, lower tolerance	-0.7 mm
Outer chamfer, upper tolerance	0.7 mm
Outer diameter	48.0 mm
Outer diameter, tolerance	p7
Outside diameter, lower tolerance	0.026 mm
Outside diameter, upper tolerance	0.051 mm
PFAS	ja
Width, lower tolerance	-0.25 mm
Width tolerance	h12
Width, upper tolerance	0.0 mm
Material back	Steel
Seal	Without
