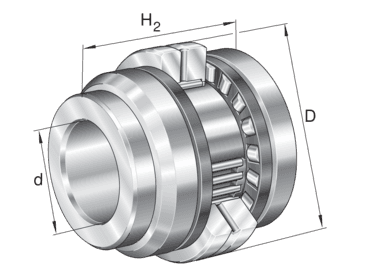

Needle roller/axial cylindrical roller bearings ZARN..-L, double direction, long shaft locating washer
| Class description short | Needle roller/axial cylindrical roller bearing |
| Mass netto | 1.608 kg |
| Operating temperature min. | -30.0 °C |
| Operating temperature max. | 120.0 °C |
| Basic dynamic load rating, radial | 40000.0 N |
| Basic static load rating, radial | 82000.0 N |
| REACH | REACH conform |
| RoHS | RoHS compliant |
| Axial runout | 1.0 µm |
| Basic dynamic load rating, axial | 90000.0 N |
| Basic static load rating, axial | 300000.0 N |
| Bearing friction torque | 2.2 Nm |
| Bore diameter | 50.0 mm |
| Brand | INA |
| Fatigue load limit, axial | 28000.0 N |
| Fatigue load limit, radial | 11500.0 N |
| Heeldiameter wave washer long | 60.0 mm |
| Height outer ring over wave washer | 60.5 mm |
| Hight | 78.0 mm |
| Limiting speed for grease lubrication | 1200.0 1/min |
| Limiting speed for oil lubrication | 3600.0 1/min |
| Recommended INA precision locknut for radial locking (not included) | ZMA50/75 |
| Recommended INA precision locknut for axial locking (not included) | AM50 |
| Mass moment of inertia | 10.46 kg*cm² |
| Maximum diameter of housing shoulder | 79.0 mm |
| Minimum diameter shaft shoulder | 58.0 mm |
| Minimum chamfer dimension | 0.6 mm |
| Minimum chamfer dimension | 0.3 mm |
| Outside diameter wave washer long | 78.0 mm |
| Outside diameter | 90.0 mm |
| PFAS | nein |
| Required locknut force | 18410.0 N |
| Rigidity axial | 4800.0 N/µm |
| Rip diameter shaft washer | 78.0 mm |
| Rotary shaft seal to DIN 3760 (not included) | 60X80X8 |
| Tightening torque nut | 85.0 Nm |
| Tilting stiffness | 2470.0 Nm/mrad |
| Width heel wave washer long | 14.0 mm |
| Width, inner ring | 11.5 mm |
| Width, outer ring | 25.0 mm |
| Width wave washer long | 29.5 mm |
| Cage | TV |
| Type of wave washer | L |
