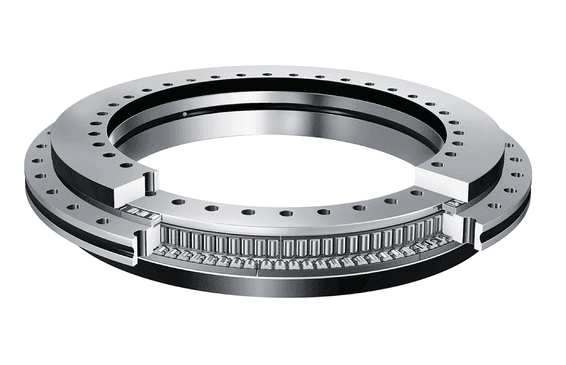

Axial/radial bearings YRTS, double direction, for screw mounting, for higher speeds
| Class description short | Axial/radial roller bearing |
| Mass netto | 32.2 kg |
| Operating temperature min. | -30.0 °C |
| Operating temperature max. | 120.0 °C |
| Basic dynamic load rating, radial | 121000.0 N |
| Basic static load rating, radial | 390000.0 N |
| Limiting speed | 650.0 1/min |
| REACH | REACH conform |
| RoHS | RoHS compliant |
| Axial rigidity of rolling element set | 23400.0 N/µm |
| Axial and radial runout, measurement standard; Measured on mounted bearing, with ideal adjacent construction. | 6.0 µm |
| Axial rigidity of bearing position | 14000.0 N/µm |
| Basic dynamic load rating, axial | 214000.0 N |
| Basic static load rating, axial | 1540000.0 N |

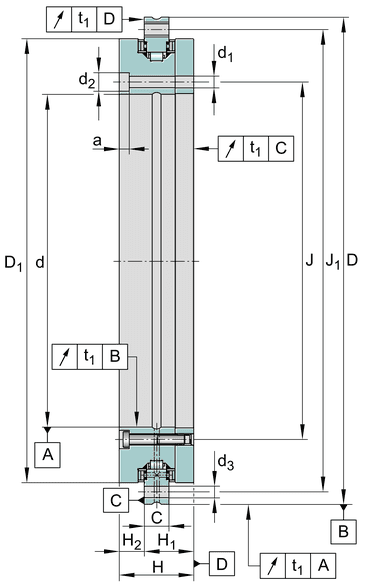

| Bore diameter | 395.0 mm |
| Bore diameter lower tolerance | -0.023 mm |
| Bore diameter upper tolerance | 0.0 mm |
| Brand | INA |
| Counterbore depth of fixing holes | 8.2 mm |
| Counterbore diameter of fixing holes | 15.0 mm |
| Fixing holes diameter inner ring | 9.3 mm |
| Fixing holes diameter outer ring | 9.3 mm |
| Height contact face outer ring | 42.5 mm |
| Height contact face outerring H1 lower tolerance | -0.07 mm |
| Height contact face outerring H1 upper tolerance | 0.06 mm |
| Height contact face outer ring | 22.5 mm |
| Height | 65.0 mm |
| Angular measuring system integrated | No |
| Mass moment of inertia for rotating inner ring | 8352.0 kg*cm² |
| Mass moment of inertia for rotating outer ring | 4254.0 kg*cm² |
| Maximum diameter inner ring | 487.7 mm |
| Outside diameter | 525.0 mm |
| Outside diameter lower tolerance | -0.028 mm |
| Outside diameter upper tolerance | 0.0 mm |
| PFAS | nein |

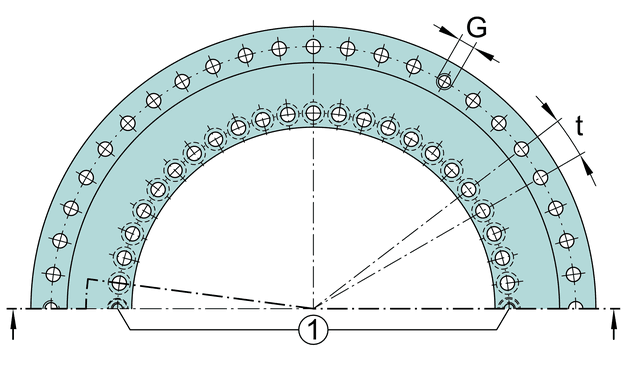

| Pitch quantity | 48.0 |
| Pitch separation angle | 7.5 ° |
| Pitch circle diameter fixing holes in inner ring | 415.0 mm |
| Pitch circle diameter fixing holes in outer ring | 505.0 mm |
| Quantity of fixing holes inner ring | 46.0 |
| Quantity of fixing holes outer ring | 45.0 |
| Quantity of retaining screws | 2.0 |
| Quantity of threaded extraction hole | 3.0 |
| Radial rigidity of rolling element set | 8700.0 N/µm |
| Radial rigidity of bearing position | 8000.0 N/µm |
| Screw tightening torque | 34.0 Nm |
| Threaded extraction hole | M12 |
| Tilting rigidity of rolling element set | 582000.0 Nm/mrad |
| Tilting rigidity of bearing position | 351000.0 Nm/mrad |
| Width of outer ring | 20.0 mm |
