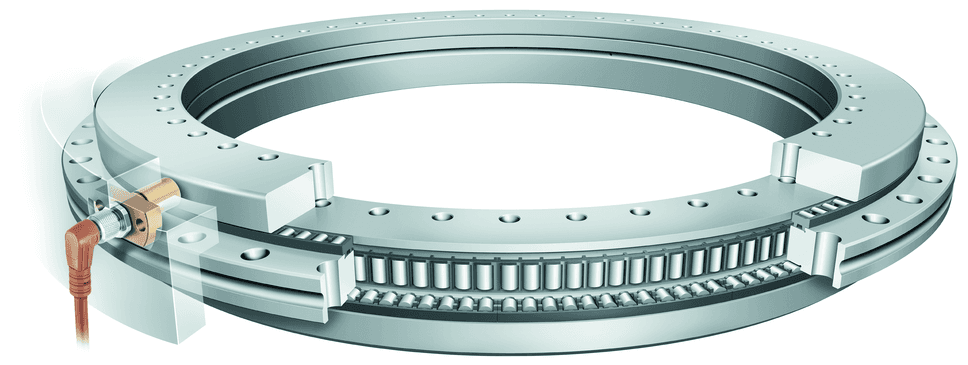

Axial/radial bearings, double direction, screw mounting, with integrated angular measuring system
| Class description short | Axial/radial roller bearing |
| Mass netto | 7.351 kg |
| Operating temperature min. | -30.0 °C |
| Operating temperature max. | 120.0 °C |
| Basic dynamic load rating, radial | 100000.0 N |
| Basic static load rating, radial | 200000.0 N |
| Limiting speed | 600.0 1/min |
| REACH | REACH conform |
| RoHS | RoHS compliant |
| Axial rigidity of rolling element set | 13500.0 N/µm |
| Axial and radial runout, measurement standard; Measured on mounted bearing, with ideal adjacent construction. | 4.0 µm |
| Axial rigidity of bearing position | 9400.0 N/µm |
| Basic dynamic load rating, axial | 134000.0 N |
| Basic static load rating, axial | 730000.0 N |
| Bearing friction torque at 5 1/min | 5.0 Nm |

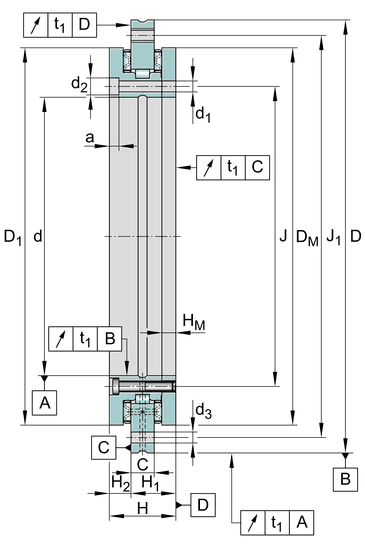

| Bore diameter | 180.0 mm |
| Bore diameter lower tolerance | -0.013 mm |
| Bore diameter upper tolerance | 0.0 mm |
| Brand | INA |
| Counterbore depth of fixing holes | 6.2 mm |
| Counterbore diameter of fixing holes | 11.0 mm |
| Fixing holes diameter inner ring | 7.0 mm |
| Fixing holes diameter outer ring | 7.0 mm |
| Height contact face outer ring | 30.0 mm |
| Height contact face outerring H1 lower tolerance | -0.03 mm |
| Height contact face outerring H1 upper tolerance | 0.03 mm |
| Height contact face outer ring | 14.0 mm |
| Height contact face outerring H2 lower tolerance | -0.025 mm |
| Height contact face outerring H2 upper tolerance | 0.025 mm |
| Height | 44.0 mm |
| Height shaft washer | 10.0 mm |
| Angular measuring system integrated | M |
| Maximum diameter inner ring | 245.1 mm |
| Outside diameter | 280.0 mm |
| Outside diameter lower tolerance | -0.018 mm |
| Outside diameter upper tolerance | 0.0 mm |
| PFAS | nein |

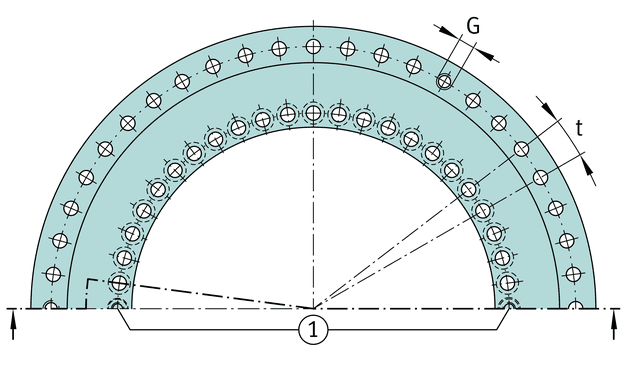

| Pitch quantity | 48.0 |
| Pitch separation angle | 7.5 ° |
| Pitch circle diameter fixing holes in inner ring | 194.0 mm |
| Pitch circle diameter fixing holes in outer ring | 260.0 mm |
| Quantity of fixing holes inner ring | 46.0 |
| Quantity of fixing holes outer ring | 45.0 |
| Quantity of retaining screws | 2.0 |
| Quantity of threaded extraction hole | 3.0 |
| Radial rigidity of rolling element set | 5300.0 N/µm |
| Radial rigidity of bearing position | 5000.0 N/µm |
| Diameter of dimensional scale on shaft locating washer | 244.38 mm |
| Screw tightening torque | 14.0 Nm |
| Threaded extraction hole | M8 |
| Tilting rigidity of rolling element set | 88500.0 Nm/mrad |
| Tilting rigidity of bearing position | 46000.0 Nm/mrad |
| Width of outer ring | 15.0 mm |
