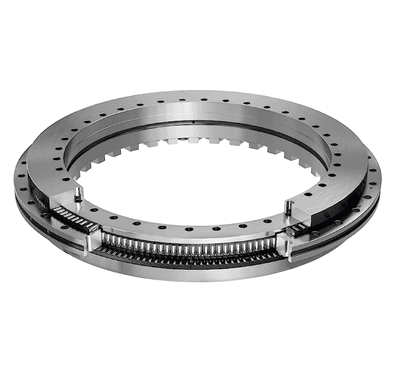

Axial/radial bearings, double direction, for screw mounting
| Class description short | Axial/radial roller bearing |
| Mass netto | 17.5 kg |
| Operating temperature min. | -30.0 °C |
| Operating temperature max. | 120.0 °C |
| Basic dynamic load rating, radial | 140000.0 N |
| Basic static load rating, radial | 355000.0 N |
| Limiting speed | 300.0 1/min |
| REACH | REACH conform |
| RoHS | RoHS compliant |
| Axial rigidity of rolling element set | 19000.0 N/µm |
| Axial and radial runout, measurement standard; Measured on mounted bearing, with ideal adjacent construction. | 6.0 µm |
| Axial rigidity of bearing position | 13800.0 N/µm |
| Basic dynamic load rating, axial | 168000.0 N |
| Basic static load rating, axial | 1090000.0 N |
| Bearing friction torque at 5 1/min | 9.0 Nm |
| Bore diameter | 260.0 mm |
| Bore diameter lower tolerance | -0.018 mm |
| Bore diameter upper tolerance | 0.0 mm |
| Brand | INA |
| Counterbore depth of fixing holes | 8.2 mm |
| Counterbore diameter of fixing holes | 15.0 mm |
| Fixing holes diameter inner ring | 9.3 mm |
| Fixing holes diameter outer ring | 9.3 mm |
| Height contact face outer ring | 36.5 mm |
| Height contact face outerring H1 lower tolerance | -0.04 mm |
| Height contact face outerring H1 upper tolerance | 0.04 mm |
| Height contact face outer ring | 18.5 mm |
| Height contact face outerring H2 lower tolerance | -0.025 mm |
| Height contact face outerring H2 upper tolerance | 0.025 mm |
| Height | 55.0 mm |
| Angular measuring system integrated | No |
| Marketing category | XL |
| Maximum diameter inner ring | 347.0 mm |
| Outside diameter | 385.0 mm |
| Outside diameter lower tolerance | -0.02 mm |
| Outside diameter upper tolerance | 0.0 mm |
| PFAS | nein |
| Pitch quantity | 36.0 |
| Pitch separation angle | 10.0 ° |
| Pitch circle diameter fixing holes in inner ring | 280.0 mm |
| Pitch circle diameter fixing holes in outer ring | 365.0 mm |
| Quantity of fixing holes inner ring | 34.0 |
| Quantity of fixing holes outer ring | 33.0 |
| Quantity of retaining screws | 2.0 |
| Quantity of threaded extraction hole | 3.0 |
| Radial rigidity of rolling element set | 8100.0 N/µm |
| Radial rigidity of bearing position | 7400.0 N/µm |
| Screw tightening torque | 34.0 Nm |
| Threaded extraction hole | M12 |
| Tilting rigidity of rolling element set | 265000.0 Nm/mrad |
| Tilting rigidity of bearing position | 166000.0 Nm/mrad |
| Width of outer ring | 18.0 mm |
