23 676,60 zł

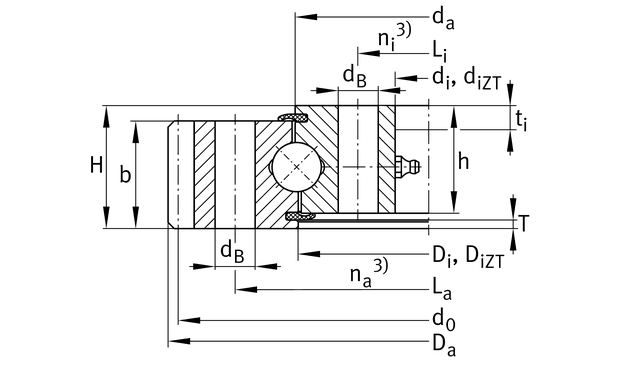

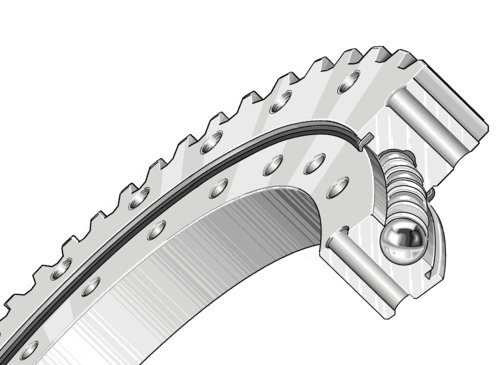

Slewing ring, 4 point contact bearing, external gear teeth
| Class description short | Slewing ring, 4 point contact bearing, external gear teeth |
| Mass netto | 12.901 kg |
| Operating temperature min. | -25.0 °C |
| Operating temperature max. | 80.0 °C |
| Basic dynamic load rating, radial | 112000.0 N |
| Basic static load rating, radial | 210000.0 N |
| REACH | REACH compliant with declarable lead proportion |
| RoHS | RoHS compliant with declarable substances |
| Basic dynamic load rating, axial | 123000.0 N |
| Basic static load rating, axial | 460000.0 N |
| Bore Diameter | 171.0 mm |
| Inner diameter outer ring | 234.0 mm |
| Brand | INA |
| Diameter centring outer ring | 236.0 mm |
| Diameter centring outer ring tolerance | IT8 |
| Fixing bore | 13.0 mm |
| Height | 40.0 mm |
| Height of inner ring | 35.0 mm |
| Length centering inner ring | 6.0 mm |
| Length centering outer ring | 2.3 mm |
| Max. tooth force against tooth fracture (at a shock factor of 1,35) | 16100.0 N |
| Max. tooth force root fatigue strenght (at a shock factor of 1,2) | 11000.0 N |
| Normal axial clearance max. | 0.26 mm |
| Normal radial clearance max. | 0.16 mm |
| Max. radial load fixing screws (friction locking) | 49600.0 N |
| Normal axial clearance min. | 0.07 mm |
| Normal radial clearance min. | 0.04 mm |
| Modul of gearing | 4.0 mm |
| Number of teeth | 78.0 |
| Outside diameter inner ring | 236.0 mm |
| Outside Diameter | 318.6 mm |
| PFAS | nein |
| Pitch circle diameter gearing | 312.0 mm |
| Pitchcircle diameter fixing holes inner ring | 195.0 mm |
| Pitchcircle diameter fixing holes outer ring | 275.0 mm |
| Number of fixing holes in inner ring | 12.0 |
| Number of fixing holes in outer ring | 12.0 |
| Width gearing | 35.0 mm |
| Width outer ring | 35.0 mm |
| Gearing | N |
