789,10 zł

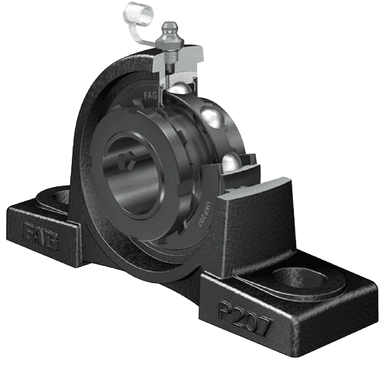

Plummer block housing units UKP, cast iron housing, with long base, radial insert ball bearing with adapter sleeve, RSR seals
| Class description short | Plummer block housing unit |
| Mass netto | 8.89 kg |
| Operating temperature min. | -20.0 °C |
| Operating temperature max. | 120.0 °C |
| REACH | REACH compliant with declarable lead proportion |
| RoHS | RoHS compliant with declarable substances |
| Bearing designation | UK216 |
| Bore diameter | 70.0 mm |
| Brand | FAG |
| Connection thread for lubrication | M6 |
| Distance fixing bore | 232.0 mm |
| Distance shaft axis | 88.9 mm |
| Bearing in kit | UK216 |
| Bearing sealed | Yes |
| Bearing sort | RIBB |
| Bearing split | No |
| Housing opening | durchgehend |
| Distance between mounting bolt centerlines (length) | 232.0 mm |
| Height bearing seat | 88.9 mm |
| Housing height | 175.0 mm |
| Housing in kit | UKP216-J7 |
| Housing material | GG |
| Housing shape | Fuss_lang |
| Housing sort | Plummer |
| Housing split | Nein |
| Inner diameter bearing | 70.0 mm |
| Housing length | 292.0 mm |
| Location on shaft | K |
| Housing qty bolts | 2 |
| Outer diameter bearing | 140.0 mm |
| Sealing type | LIP |
| Housing width | 78.0 mm |
| Basic dynamic load rating | 76000.0 N |
| Basic static load rating | 54000.0 N |
| Height | 175.0 mm |
| Height (base) | 30.0 mm |
| Housing | P216 |
| Length (slot) | 31.0 mm |
| Length total | 292.0 mm |
| Locking collar total width | 78.0 mm |
| Material | GG |
| PFAS | nein |
| Width (base) | 78.0 mm |
| Width (slot) | 25.0 mm |
| Housing clearance | J7 |
