72,00 zł

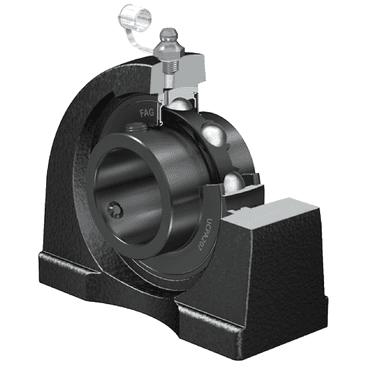

Plummer block housing units UCPA, cast iron housing, with short base, radial insert ball bearing with grub screws in inner ring, RSR seals
| Class description short | Plummer block housing unit |
| Mass netto | 0.649 kg |
| Operating temperature min. | -20.0 °C |
| Operating temperature max. | 120.0 °C |
| Basic dynamic load rating, radial | 13600.0 N |
| Basic static load rating, radial | 6600.0 N |
| REACH | REACH compliant with declarable lead proportion |
| RoHS | RoHS compliant with declarable substances |
| Bearing designation | UC201 |
| Bore diameter | 12.0 mm |
| Brand | FAG |
| Connection thread for lubrication | M6 |
| Distance of raceway to locking collar | 18.3 mm |

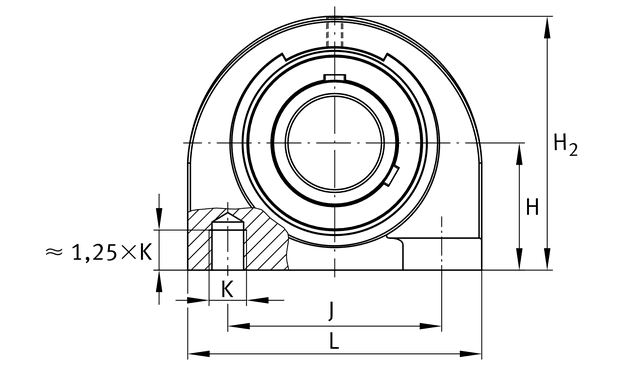

| Distance fixing bore | 52.0 mm |
| Distance shaft axis | 30.2 mm |
| Fatigue load limit, radial | 345.0 N |
| Bearing in kit | UC201 |
| Bearing sealed | Yes |
| Bearing sort | RIBB |
| Bearing split | No |
| Housing opening | durchgehend |
| Distance between mounting bolt centerlines (length) | 52.0 mm |
| Height bearing seat | 30.2 mm |
| Housing height | 62.0 mm |
| Housing in kit | UCPA201-J7 |
| Housing material | GG |
| Housing shape | Fuss_kurz |
| Housing sort | Plummer |
| Housing split | Nein |
| Inner diameter bearing | 12.0 mm |
| Housing length | 76.0 mm |
| Location on shaft | Acc |
| Housing qty bolts | 2 |
| Outer diameter bearing | 47.0 mm |
| Sealing type | LIP |
| Housing width | 38.0 mm |
| Basic dynamic load rating | 13600.0 N |
| Basic static load rating | 6600.0 N |
| Height | 62.0 mm |
| Housing | PA204 |
| Length total | 76.0 mm |
| Material | GG |
| PFAS | nein |
| Thread fixing bore | M10 |
| Width (base) | 38.0 mm |
| Width of inner ring | 31.0 mm |
| Housing clearance | J7 |
| Material | GG |
