8915,50 zł

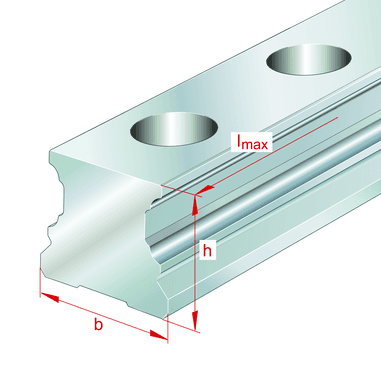

Guideways for linear recirculating ball bearing unit and four-row linear recirculating ball guidance system
| Class description short | Profile rail |
| Mass netto | 81.85 kg |
| REACH | REACH compliant for SVHC free linear products (acc to PL responsibles) |
| RoHS | RoHS compliant |
| Accuracy class | G2 |
| Bore diameter | 15.4 mm |
| Brand | INA |
| Distance | 107.0 mm |
| Distance | 107.0 mm |
| Distance | 20.0 mm |
| Distance | 20.0 mm |
| ~guideway length | 6000.0 mm |
| ~Guideway length | ~6000 |
| Height | 41.5 mm |
| Increment | 120.0 mm |
| Length | 19.0 mm |
| Distance Distance | -0.5 mm |
| Lower tolerance | -0.035 mm |
| Max length single piece guideway | 6000.0 mm |
| PFAS | nein |
| Tightening torque | 220.0 Nm |
| Upper tolerance | 0.5 mm |
| Upper tolerance | -0.005 mm |
| Width | 53.0 mm |
| Size Code | 55 |
| Thread | M14 |
| Version | B |
