3787,00 zł

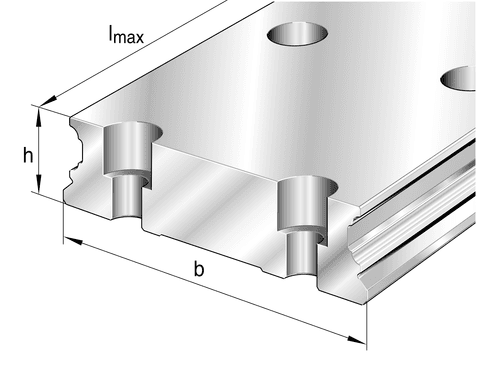

Guideways for four-row linear recirculating ball bearing and guideway assembly KUVE..-W, wide guideway
| Class description short | Profile rail |
| Mass netto | 14.95 kg |
| REACH | REACH compliant for SVHC free linear products (acc to PL responsibles) |
| RoHS | RoHS compliant |
| Accuracy class | G4 |
| Bore diameter | 4.6 mm |
| Brand | INA |
| Distance | 9.0 mm |
| Distance | 53.0 mm |
| Distance | 53.0 mm |
| Distance | 20.0 mm |
| Distance | 20.0 mm |
| ~guideway length | 3000.0 mm |
| ~Guideway length | ~3000 |
| Height | 17.0 mm |
| Increment | 24.0 mm |
| Increment | 60.0 mm |
| Length | 10.0 mm |
| Distance Distance | -0.5 mm |
| Lower tolerance | -0.035 mm |
| Max length single piece guideway | 2940.0 mm |
| PFAS | nein |
| Tightening torque | 5.0 Nm |
| Upper tolerance | 0.5 mm |
| Upper tolerance | -0.005 mm |
| Usable carriage(s) | KWVE20-W... |
| Usable linear systems | KUVE20-W... |
| Width | 42.0 mm |
| Guideway design | W |
| Size Code | 20 |
| Thread | M4 |
