2232,60 zł

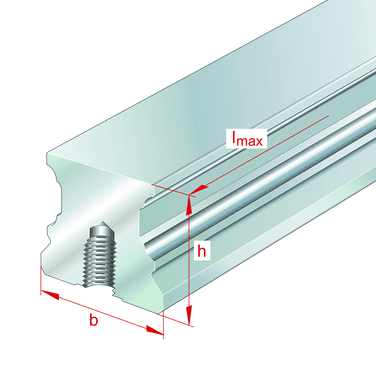

Guideways for linear ball bearing unit and four-row linear recirculating ball guidance system, for screw mounting from below
| Class description short | Profile rail |
| Mass netto | 6.48 kg |
| REACH | REACH compliant for SVHC free linear products (acc to PL responsibles) |
| RoHS | RoHS compliant |
| Accuracy class | G4 |
| Brand | INA |

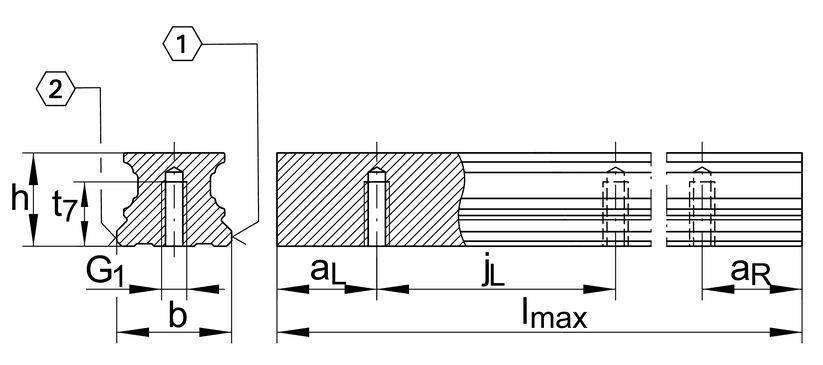

| Distance | 53.0 mm |
| Distance | 53.0 mm |
| Distance | 20.0 mm |
| Distance | 20.0 mm |
| ~guideway length | 3000.0 mm |
| ~Guideway length | ~3000 |
| Height | 17.0 mm |
| Increment | 60.0 mm |
| Lower tolerance | -0.035 mm |
| Max length single piece guideway | 6000.0 mm |
| PFAS | nein |
| Thread length | 10.0 mm |
| Tightening torque | 17.0 Nm |
| Upper tolerance | -0.005 mm |
| Usable carriage(s) | KWVE20-B |
| Usable linear systems | KUVE20-B |
| Width | 20.0 mm |
| Size Code | 20 |
| Thread | M6 |
