6877,60 zł

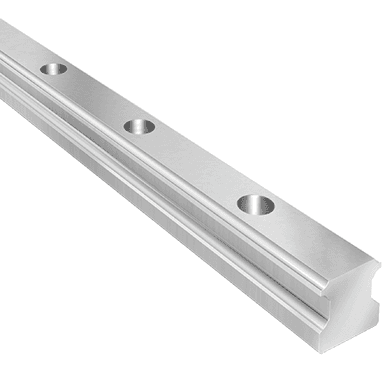

Guideways for six-row linear recirculating ball bearing and guideway assembly
| Class description short | Profile rail |
| Mass netto | 38.445 kg |
| REACH | REACH compliant for SVHC free linear products (acc to PL responsibles) |
| Accuracy class | G3 |
| Bore diameter | 9.0 mm |
| Brand | INA |
| Distance | 71.0 mm |
| Distance | 71.0 mm |
| Distance | 20.0 mm |
| Distance | 20.0 mm |
| Guideway length | 6000.0 mm |
| ~Guideway length | ~6000 |
| Height | 29.7 mm |
| Increment | 80.0 mm |
| Length | 17.2 mm |
| Lower tolerance | -0.5 mm |
| Lower tolerance | -0.035 mm |
| Max length single piece guideway | 6000.0 mm |
| PFAS | nein |
| Tightening torque | 41.0 Nm |
| Upper tolerance | 0.5 mm |
| Upper tolerance | -0.005 mm |
| Usable carriage(s) | KWSE35... |
| Usable linear systems | KUSE35... |
| Width | 34.0 mm |
| Size code | 35 |
| Fixing screws (DIN ISO 4762-12.9) | M8 |
