7040,10 zł

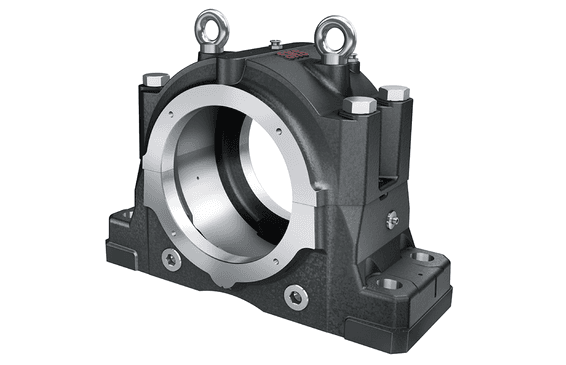

Plummer block housing, split, for spherical roller bearings, metric shaft diameters, Bolt-On design, for grease lubrication
| Class description short | Plummer block housing |
| Mass netto | 77.7 kg |
| REACH | REACH conform |
| RoHS | RoHS compliant |

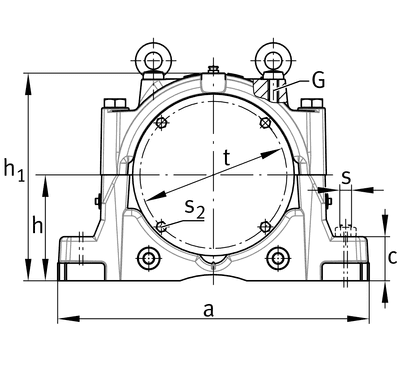

| Base height | 75.0 mm |

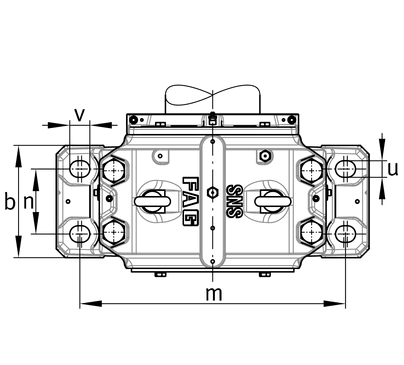

| Base hole distance 1 | 450.0 mm |
| Base hole distance 2 | 110.0 mm |
| Base hole length | 34.0 mm |
| Base hole width | 28.0 mm |
| Base width | 190.0 mm |

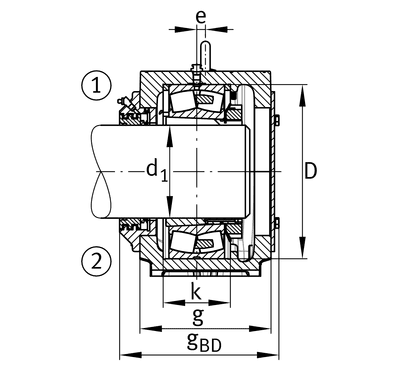

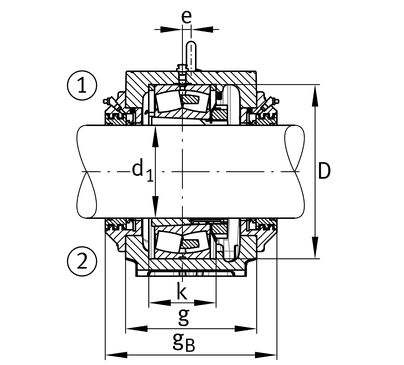

| Bearing seat | 300.0 mm |
| Bearing seat width | 116.0 mm |
| Brand | FAG |
| Center height | 180.0 mm |
| Center offset | 15.0 mm |
| Housing height | 353.0 mm |
| Housing width | 240.0 mm |
| PFAS | nein |
| Screw size base hole fixing | M24 |
| Material | D |
| Length base | 530.0 mm |
