2465,90 zł
brutto · 2004,80 zł netto
Kupujesz na firmę? Ceny netto i progi ilościowe w Strefie Partnera.

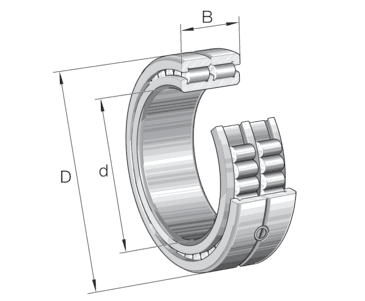

| Średnica wewnętrzna d | 140mm |
|---|---|
| Średnica zewnętrzna D | 190mm |
| Szerokość B | 50mm |
| Obciążenie dynamiczne C | 270 000N |
| Obciążenie statyczne C₀ | 550 000N |
| Prędkość graniczna | 1 9501/min |
| Masa | 4,057kg |
| Klasa luzu | CN (Group N) |
| Temperatura pracy | -30…120°C |
| Reference speed | 1 3701/min |
|---|---|
| Bearing designation DIN5412 | NNC4928V |
| Distance to lubrication hole | 25mm |
| Fatigue load limit, radial | 67 000N |
| Maximum diameter of housing shoulder | 170,5mm |
| Maximum rib diameter inner ring | 159mm |
| Maximum recess radius | 1,5mm |
| Minimum diameter shaft shoulder | 159mm |
| Minimum rib diameter outer ring | 170,5mm |
| Minimum chamfer dimension | 1,5mm |
| Minimum shaft shoulder | 159mm |
| Number of rows | 2 |
| Tolerance class | PN |
| Design | A |
