223,60 zł

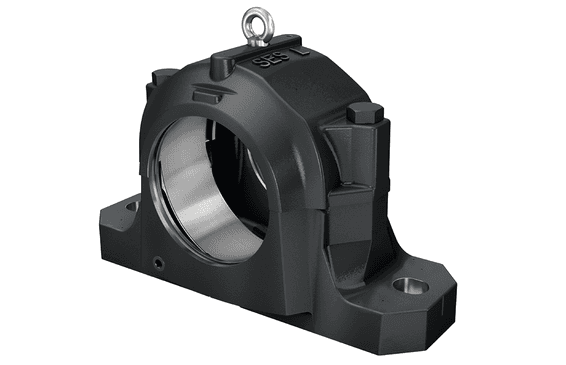

Split plummer block housing for various bearing designs. The SNV series will be replaced by the new SES series in 2022.

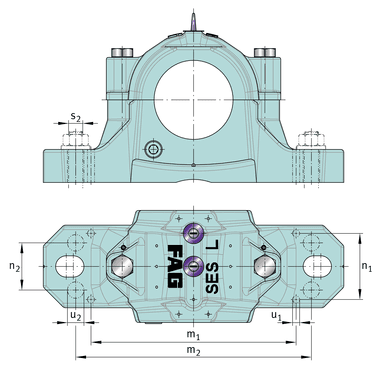

| Class description short | Plummer block housing |
| Mass netto | 2.93 kg |
| Width bearing seat | 30.0 mm |
| Bore diameter u1 | 4.0 mm |
| Bore diameter u2 | 11.0 mm |
| Brand | FAG |
| Diameter sealing | 67.0 mm |
| Diameter sealing groove | 75.5 mm |
| Outside diameter sealing labyrinth | 73.7 mm |
| Distance fixing bore | 170.0 mm |
| Distance holes aligned pins m1 | 138.0 mm |
| Distance lubrication | 45.0 mm |
| Distance lubriaction sealing | 71.0 mm |
| Base to shaft centerline height | 60.0 mm |
| Height | 109.0 mm |
| Height base | 25.0 mm |
| Length slot | 20.0 mm |
| Outside diameter bearing | 85.0 mm |
| PFAS | nein |
| Screw size | 0.5 inch |
| Size of fixing screws | M12 |
| Wall thickness | 12.0 mm |
| Width base | 60.0 mm |
| Distance sealing | 67.0 mm |
| Distance oil lubricatian | 30.0 mm |
| Width sealing groove | 5.0 mm |
| Width housing body | 85.0 mm |
| Width slot | 15.0 mm |
| Length base | 205.0 mm |
