3829,10 zł

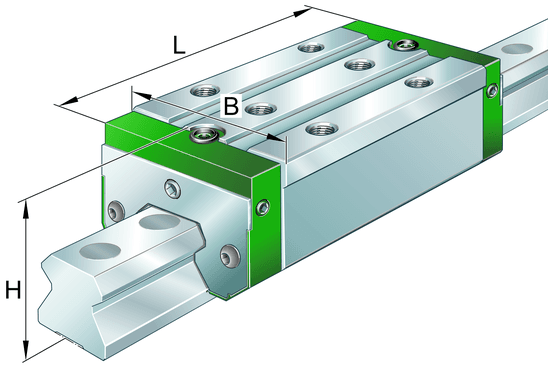

Standard carriage with full complement recirculating roller system for linear recirculating roller bearing and guideway assembly, for oil or grease lubrication
| Class description short | Recirculating roller bearing carriage |
| Mass netto | 10.612 kg |
| REACH | REACH compliant for SVHC free linear products (acc to PL responsibles) |
| Accuracy class | G2 |
| Brand | INA |
| Position lubrication connector | 19.6 mm |
| Position lubrication connector | 19.6 mm |
| Lubrication connector | 6.0 mm |
| Thread depth | 12.5 mm |
| Distance from locating edge to hole | 25.0 mm |
| Distance from locating edge on carriage to locating edge on guideway | 31.5 mm |
| Free space, system dimension | 11.5 mm |
| Height system | 90.0 mm |
| Overall length carriage | 261.9 mm |
| Dynamic load rating | 270000.0 N |
| Dynamic load rating | 640000.0 N |
| Maximum permissible screw depth for lubrication connectors | 6.0 mm |
| Maximum permissible screw depth for lubrication connectors | 6.0 mm |
| Max. diameter of lubrication hole in adjacent construction | 6.0 mm |
| Static moment rating about X axis | 7600.0 Nm |
| Static moment rating about Y axis | 24000.0 Nm |
| Static moment rating about Z axis | 21500.0 Nm |
| O-Ring DIN 3771 | 18x1,5 |
| PFAS | nein |
| Position lubrication connector | 63.1 mm |
| Position lubrication connector | 43.8 mm |
| Preload class | V3 |
| Maximum tightening torque | 340.0 Nm |
| Width carriage | 126.0 mm |
| Width rail | 63.0 mm |
| Carriage design | SL |
| Lubrication connector | M6 |
| Size Code | 65 |
| Fixing screws below (DIN ISO 4762-12.9) | M16 |
| Version | F |
