7528,30 zł

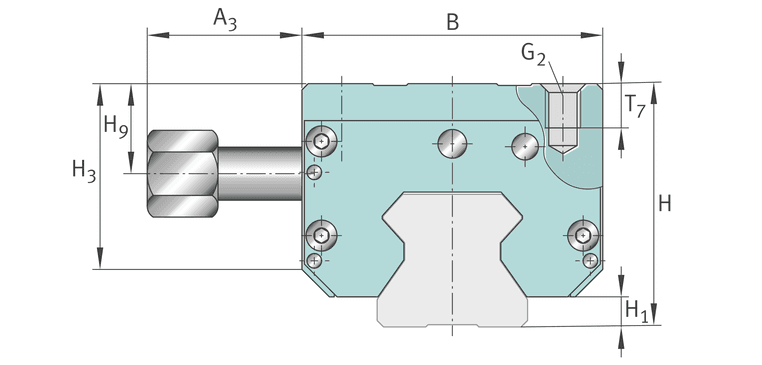

Clamping element RUKS..-D-A-H-SR,for linear recirculating roller bearing and guideway assembly, oil connector on side
| Class description short | Braking/clamping element |
| Mass netto | 4.22 kg |
| REACH | REACH compliant for SVHC free linear products (acc to PL responsibles) |
| Brand | INA |
| Depth thread | 12.5 mm |
| Distance | 43.5 mm |
| Suitable guideway | TSX45-E; TSX45-F |
| Height sytem | 70.0 mm |
| Hole pattern lengthwise | 60.0 mm |
| Hole pattern width | 60.0 mm |
| Length of clamping element | 156.6 mm |
| Length saddle plate | 134.0 mm |
| Max diameter lubrication hole adjacent constr | 6.0 mm |
| Mounting dimension oil connector | 39.0 mm |
| Oil feed | SR |
| PFAS | nein |
| Space (system) | 8.7 mm |
| Suitable system | RUE45-E; RUE45-F |
| Tightening torque above | 83.0 Nm |
| Width clamping element | 84.0 mm |
| Design | H |
| Inner construction | A |
| Size code | 45 |
| Size thread above for DIN ISO 4762-12.9 | M10 |
| Version | D |
