2990,80 zł

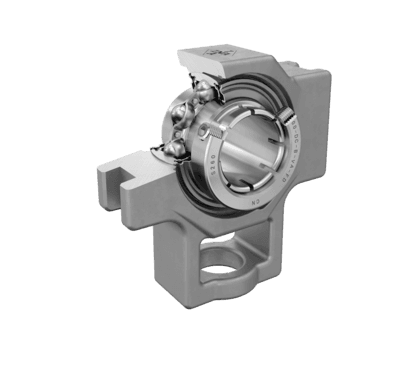

| Class description short | Take-up housing unit |
| Mass netto | 1.25 kg |
| Operating temperature min. | -20.0 °C |
| Operating temperature max. | 100.0 °C |
| Basic dynamic load rating, radial | 16700.0 N |
| Basic static load rating, radial | 9110.0 N |
| Bearing designation | OCE30-DC-B-VA-FD |
| Bore diameter | 30.0 mm |
| Brand | INA |
| Distance guidance grooves | 89.0 mm |
| Distance shaft axis | 67.0 mm |
| Fatigue load limit, radial | 760.0 N |
| Fixing bore | 22.0 mm |
| Bearing sealed | Yes |
| Bearing sort | RIBB |
| Bearing split | No |
| Housing opening | durchgehend |
| Housing height | 102.0 mm |
| Housing sort | Take-up |
| Housing split | Nein |
| Inner diameter bearing | 30.0 mm |
| Housing length | 105.0 mm |
| Location on shaft | Acc |
| Housing qty bolts | 1 |
| Sealing type | LIP |
| Basic dynamic load rating | 16700.0 N |
| Basic static load rating | 9110.0 N |
| Height | 102.0 mm |
| Height housing fixing side | 52.0 mm |
| Height recess | 37.0 mm |
| Housing | GEH.TUE06-VA-NAT |
| Length fixed link | 9.0 mm |
| Length guidance groove | 50.0 mm |
| Length total | 105.0 mm |
| Locking collar total width | 40.4 mm |
| Material | VA |
| PFAS | nein |
| Protecting cap | KASK06-VA-G-NAT |
| Width guidance groove | 12.0 mm |
| Width housing | 27.0 mm |
| Width housing fixing side | 37.0 mm |
| Width recess | 18.0 mm |
