490,30 zł

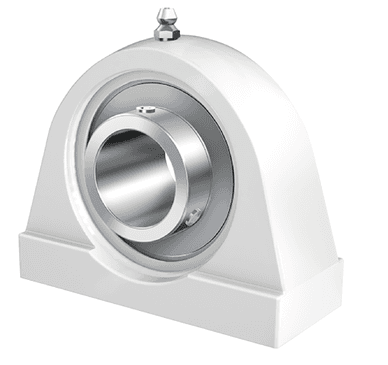

Plummer block housing units, FD design
| Class description short | Plummer block housing unit |
| Mass netto | 0.27 kg |
| Width | 31.0 mm |
| Operating temperature min. | -30.0 °C |
| Operating temperature max. | 100.0 °C |
| REACH | REACH conform |
| RoHS | RoHS compliant |
| Bearing designation | GYE20-KRR-B-FA107-VA-FD |
| Bore diameter | 20.0 mm |
| Brand | INA |
| Connection thread for lubrication | 1/4"-28 UNF |
| Distance raceway to locking collar | 18.3 mm |
| Distance fixing bore | 50.8 mm |
| Distance housing centre to cap end | 32.35 mm |
| Distance shaft axis | 33.3 mm |
| End cap | KASK04-S-G-WHT |
| Bearing in kit | GYE20-KRR-B-FA107-VA-FD |
| Bearing sealed | Yes |
| Bearing sort | RIBB |
| Bearing split | No |
| Housing opening | combi |
| Distance between mounting bolt centerlines (length) | 50.8 mm |
| Height bearing seat | 33.3 mm |
| Housing height | 66.0 mm |
| Housing in kit | RSHEY20-TV-VA-FD |
| Housing material | PL |
| Housing shape | Fuss_kurz |
| Housing sort | Plummer |
| Housing split | Nein |
| Inner diameter bearing | 20.0 mm |
| Housing length | 72.8 mm |
| Location on shaft | Acc |
| Housing qty bolts | 2 |
| Outer diameter bearing | 47.0 mm |
| Sealing type | LIP |
| Housing width | 34.5 mm |
| Basic dynamic load rating | 10900.0 N |
| Basic static load rating | 5300.0 N |
| Height | 66.0 mm |
| Housing | GEH.SHE04-TV-WHT |
| Length | 72.8 mm |
| Material | TV-FD |
| Open protecting cap | KASK04-S-R-NBR-WHT |
| PFAS | nein |
| Thread fixing bore | M8 |
| Width (base) | 34.5 mm |
| Width of flats | 2.5 mm |
| Corrosion resistant bearing | VA |
| Special material | TV |
