417,90 zł

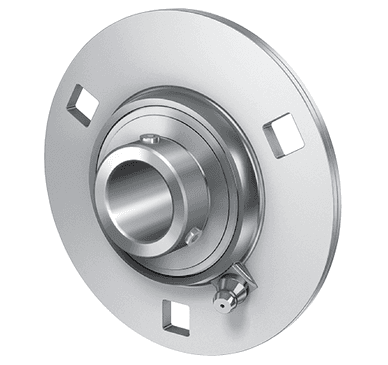

Housing units RRY..-VA, three/four-bolt flanged housing units, sheet steel, grub screws in inner ring, R seals, with anti-corrosion protection, without relubrication facility
| Class description short | Flanged housing unit |
| Mass netto | 0.32 kg |
| Width | 31.0 mm |
| Operating temperature min. | -35.0 °C |
| Operating temperature max. | 100.0 °C |
| Basic dynamic load rating, radial | 12300.0 N |
| Basic static load rating, radial | 6300.0 N |
| REACH | REACH conform |
| RoHS | RoHS compliant |
| Bearing designation | GYE20-KRR-B-VA |
| Bore diameter | 20.0 mm |
| Brand | INA |
| Fatigue load limit, radial | 310.0 N |
| Fixing square | 8.7 mm |
| Bearing in kit | SUC204 |
| Bearing sealed | Yes |
| Bearing sort | RIBB |
| Bearing split | No |
| Housing opening | durchgehend |
| Distance between mounting bolt centerlines (length) | 71.5 mm |
| Height bearing seat | 45.25 mm |
| Housing height | 90.5 mm |
| Housing in kit | RRY20-VA |
| Housing material | SB |
| Housing shape | Rund |
| Housing sort | Flanged |
| Housing split | Nein |
| Inner diameter bearing | 20.0 mm |
| Housing length | 90.5 mm |
| Location on shaft | Acc |
| Housing qty bolts | 3-4 |
| Outer diameter bearing | 47.0 mm |
| Sealing type | LIP |
| Housing width | 31.0 mm |
| Basic dynamic load rating | 12300.0 N |
| Basic static load rating | 6300.0 N |
| Height flange | 90.5 mm |
| Height housing | 8.0 mm |
| Housing | FLAN47-MSB-VA |
| Load carrying capacity (housing) | 3200.0 N |
| Material | VA |
| Number of housings | 2.0 |
| Number of screwing holes | 3.0 |
| PFAS | nein |
| Pitch circle diameter (holes) | 71.5 mm |
| Shoulder diameter housing | 55.0 mm |
| Thickness of flange | 2.0 mm |
| Total height unit | 20.3 mm |
| Special material | VA |
