306,80 zł

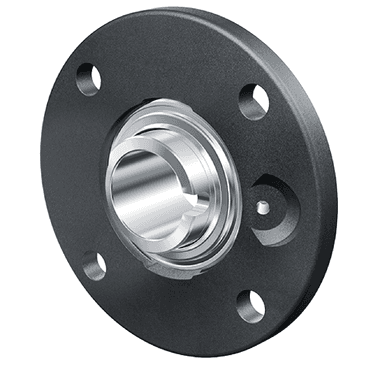

Flanged housing unit RMEL..-N
| Class description short | Flanged housing unit |
| Mass netto | 1.19 kg |
| Width | 37.7 mm |
| Operating temperature min. | -40.0 °C |
| Operating temperature max. | 180.0 °C |
| Basic dynamic load rating, radial | 27500.0 N |
| Basic static load rating, radial | 15300.0 N |
| REACH | REACH conform |
| RoHS | RoHS compliant |
| Bearing designation | GLE35-XL-KRR-B |
| Bore diameter | 35.0 mm |
| Brand | INA |
| Connection thread for lubrication | M6 |
| Diameter spigot | 90.0 mm |
| Distance raceway | 1.0 mm |
| Fatigue load limit, radial | 700.0 N |
| Fixing bore | 11.5 mm |
| Bearing in kit | GLE35-XL-KRR-B |
| Bearing sealed | Yes |
| Bearing sort | RIBB |
| Bearing split | No |
| Housing opening | durchgehend |
| Housing in kit | RMEL35-N |
| Housing material | GG |
| Housing shape | Rund |
| Housing sort | Flanged |
| Housing split | Nein |
| Inner diameter bearing | 35.0 mm |
| Location on shaft | Acc |
| Housing qty bolts | 4 |
| Sealing type | LIP |
| Height flange | 135.0 mm |
| Height housing | 20.5 mm |
| Housing | ME07-N |
| Material | GG |
| Number of housings | 1.0 |
| Number of screwing holes | 4.0 |
| PFAS | ja |
| Pitch circle diameter (holes) | 110.0 mm |
| Thickness of flange | 10.0 mm |
| Total height unit | 37.7 mm |
| Groove | N |
